2003 5.4 EB Fuel Pump Relay

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA
Your welcome I wasn't trying to be a smart a$$ with the answer I understand you asking and making sure of the wire


Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA
See attached print
The connector with the dark green /yellow is C270K pin 3
The connector with the red wire is C270A pin 10

The jumper should only be used as a temporary means to bypass the contacts for the Fuel Pump Relay

F.P. Relay Jumper.jpg

Last edited:

Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA
You may have to print the diagram in the previous post to get a better view
Have attached some better prints

On 24-03 look for C270a red wire
On 24-09 look for C270k dk gn/ye wire

Those are where the jumper gets installed


Attachments

  • 24-09.pdf
    28.8 KB · Views: 73
  • 24-03.pdf
    30.4 KB · Views: 61
OP
OP
CertusExpo

CertusExpo

Customizing trucks since I was 7 with my Legos
Joined
Jul 3, 2014
Posts
333
Reaction score
64
Location
Fort Worth, TX
So, after getting 100 miles to half a tank of gas, I realized the PCM is not just sending power to the relay but controlling the voltage therefore controlling the amount of fuel being supplied.

Now I'm wondering this. Could I just add a potentiometer like this one LINK to the circuit that would allow manual voltage control for low need scenarios such as surface street driving or stop and go traffic?


Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA

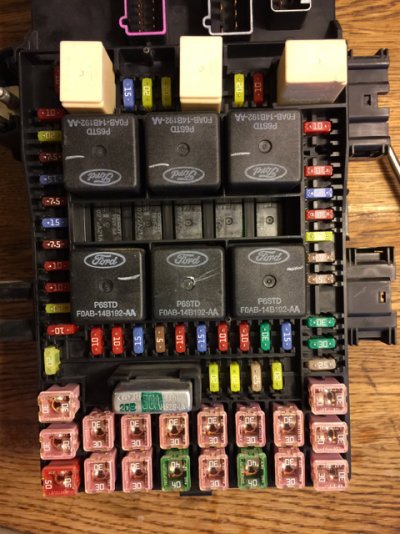

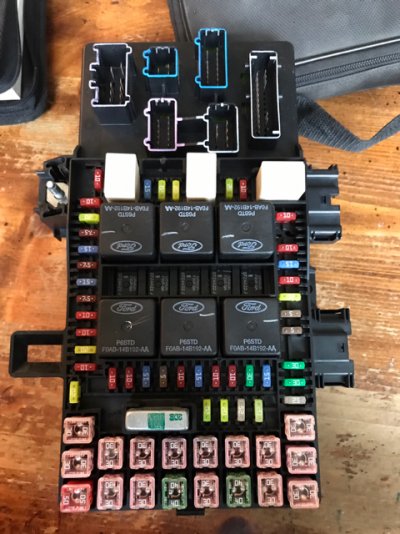

If you decide to replace the fuse box be careful Ford used two different fuse boxes in 2003 they are not interchangeable the replacement must have the same part number as the original

the complete part number is a combination of 12 numbers and letters

4 then 6 then 2 not just the 6 in the middle see the attached as an example


OP
OP
CertusExpo

CertusExpo

Customizing trucks since I was 7 with my Legos
Joined
Jul 3, 2014
Posts
333
Reaction score
64
Location
Fort Worth, TX
Thank you again because as a matter of fact, I'm getting ready to head out to Pick a Part.

By the way, what do you think of the potentiometer idea?

Last edited:
OP
OP
CertusExpo

CertusExpo

Customizing trucks since I was 7 with my Legos
Joined
Jul 3, 2014
Posts
333
Reaction score
64
Location
Fort Worth, TX
Have no idea if the PCM varies the voltage or not

I came across this thread LINK and please see the large paragraph under ***EXPLANATIONS***

"variable duty signal cycle to the fuel pump" which makes sense to me for fuel efficiency.

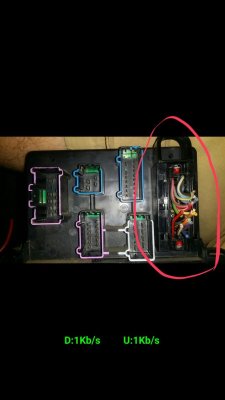

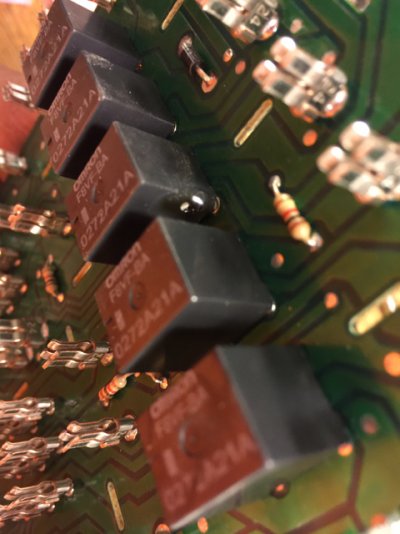

Edit: I'm also trying to avoid a situation like ExpyGirl03 had where she replaced the fuel pump relay only to have it burn up again by replacing it with an externally accessible and replaceable relay.

Last edited:
