AWD/4WD switch on 2002

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

efaubert1

Member
Joined
Apr 11, 2015
Posts
15
Reaction score
1
Location
Alabama
Hello,

I have had issues with my 4wd not working since I bought this one 2 years ago. I went through relays and fuses, cleaned all the contact points, and walah! It worked...for a time. Now it is not working again. I again checked the electrical, but when checking the switch itself I cannot find a pinout diagram for the switch. The only two pins with continuity are the center 2, and the ohms change when I switch from AWD to 4Hi and then to 4Lo. Am I to assume the outer 2 pins are only for input of 12 volts to the indicator light or????

Any help greatly appreciated.


Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA
Measure the resistance between mode switch terminals 2 and 3 while rotating the mode switch through all switch positions; refer to the following chart.

  • Mode Switch Position Resistance Range
    A4WD 3,700-4,100
    4WD HIGH 1,040-1,160
    4WD LOW 340-380


Attachments

  • 34-01.pdf
    37.2 KB · Views: 7
OP
OP
E

efaubert1

Member
Joined
Apr 11, 2015
Posts
15
Reaction score
1
Location
Alabama
Thank you Bob. Based on the resistance I got, it isn't the switch. I finally found the "help me fix my 4x4 problem" thread you responded to. I am going to move on to the fuse 104, then the 37 pin connector, then the splice. Is the 37 pin under dash, or on the firewall if I might ask?

OP
OP
E

efaubert1

Member
Joined
Apr 11, 2015
Posts
15
Reaction score
1
Location
Alabama
Ok, so I have power across 104, fuse is good, power at pin 37 on c-159, switch ohms out at 3809, 1106, 363.

Where to next? Do I move on to relays? I have no idea which relay to begin with. When this is all over I gotta get that service manual cd from you.


Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA
Look at print 34-02 Attached Check to see if you have power going to the relays


Attachments

  • 34-01.pdf
    37.2 KB · Views: 9
  • 34-02.pdf
    25.4 KB · Views: 11
  • 34-03.pdf
    19.5 KB · Views: 5
OP
OP
E

efaubert1

Member
Joined
Apr 11, 2015
Posts
15
Reaction score
1
Location
Alabama

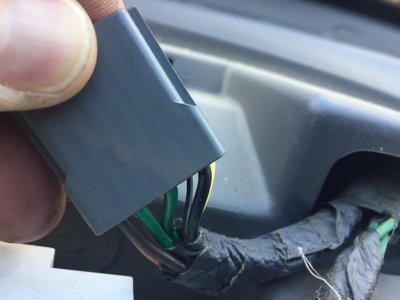

alright, I am assuming I found the correct relay since when I ran the part # it came back as transfer case. Gray, under top dash. Two green wires have power at all times. I am assuming I move on to the shift motor.Connector.JPG


gixer2000

Retrofit or Bust
Joined
Oct 13, 2015
Posts
1,467
Reaction score
642
Location
Massachusetts
alright, I am assuming I found the correct relay since when I ran the part # it came back as transfer case. Gray, under top dash. Two green wires have power at all times. I am assuming I move on to the shift motor.View attachment 19534

Have you checked your GEM module? I had this issue with my mother's 98 and the gem was toast
