Sticky worthy??? Quick fix for rear wiper motor turning but not moving wiper arm

Discussion in 'General Discussion' started by 273hypo, Aug 24, 2011.

  1. 273hypo

    273hypo Member

    Posts:
    9
    Likes Received:
    1
    Joined:
    Feb 9, 2011
    Location:
    NJ
    Does your rear wiper motor make a clicking sound but the wiper arm doesn't move? It may not be the wiper motor broken again but something simpler and free to fix in less than 10 minutes. When my third rear wiper motor in a month stopped moving the wiper arm I investigated further. Turns out its not a bad motor or worn gears. The cause is wiper arm assembly spring. The spring coils are too strong and knock the pivot screw out of alignment with the internal gear drive. Take note of how your rear wiper motor is working by listening for the click which should be the wiper arm rotating on the windshield. If your wiper arm doesn't move then remove the wiper arm and watch the pivot screw. If it turns then this fix is for you!!!

    Here is the fix - You will need a flat head screw driver and a 1/2" wrench, that's it!

    1. Remove rear wiper arm assembly, remove plastic cover from base and loosen & remove nut. Then pull off rear wiper arm assembly, you may need to pull with some force! See pic #1 & #2

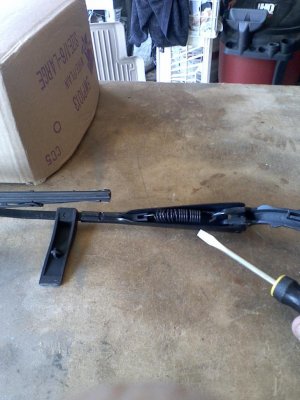

    2. Turn over the wiper arm assembly. Backside facing you. Next, pry open / expand wiper arm spring (bend wiper arm back which stretches the spring)
    See pic #3

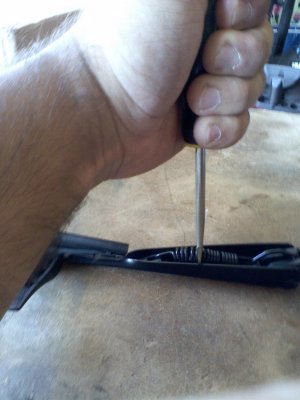

    3. Place flat head tip of screw driver into the first spring closest to wiper.
    4. Release spring, trapping tip
    5. Twist flat head tip which create an opening (about 1/8") between the spring loops.
    See Pic #4.

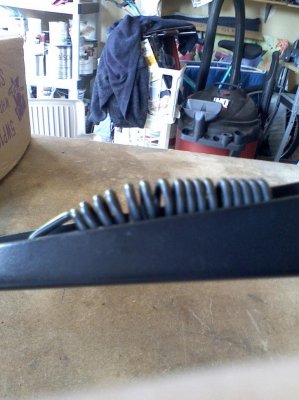

    6. Spring wil look like bubbled (See pic #5) after you enlarge a few of the spring coils.
    7. Repeat from step 3 with the second spring and so on until you feel you created less tension and a flatter appearance from the base of the arm to the tip of the wiper blade.
    8. Reinstall and test....you should see difference in how freely it moves.
    9. Yes, this proceedure applies less pressure to the glass but it still cleans the water off of it properly.

    Maybe if the mods agree this can be a sticky for those who think its a wiper motor failure but really is too much tension from the wiper arm spring.

    Let me know how you make out fellas! It worked for me!

    Its been a few days now and my rear wiper always rotates when I turn it on...at least 50 tries so far!!!

    273HYPO


    Attached Files:

  2. aircargoo

    aircargoo Full Access Members

    Age:
    52
    Posts:
    297
    Likes Received:
    7
    Joined:
    Jun 30, 2008
    Location:
    new jersey
    i never ever use that wiper in rear. wish it wasnt there:smokin:....would look cleaner back there. car wash never get it right to around it when washed.:buttkick:....lol

  3. dcarr

    dcarr Full Access Members

    Posts:
    207
    Likes Received:
    6
    Joined:
    Aug 23, 2011
    Location:
    stafford ct
    i hate the mark the rear wiper leaves on your window. took my arm off completely

  4. Frank

    Frank New Member

    Posts:
    3
    Likes Received:
    0
    Joined:
    Jan 30, 2012
    Location:
    Alabama
    fix worked perfectly for me, thanks!

  5. Knautical2001

    Knautical2001 Full Access Members

    Posts:
    352
    Likes Received:
    2
    Joined:
    Jan 29, 2012
    Location:
    Florida
    Good to know for the future. :D Mine works fine. :D AIRCARGO: I wash mine myself so I don't have that problem. LOL :D

  6. 10K-Watts

    10K-Watts Super Moderator Staff Member Supporting Member

    Posts:
    13,348
    Likes Received:
    660
    Joined:
    May 19, 2010
    Location:
    Yorktown, VA
    i've never used it...in 7.5 yrs...nor on my 4runner that i had...

  7. frito-bandito

    frito-bandito Member

    Posts:
    22
    Likes Received:
    0
    Joined:
    Mar 1, 2012
    Location:
    Inman SC
    My problem was that the nut that held the arm on was loose, a couple seconds and a pair of channel locks remedied mine.

  8. Big Red Monster

    Big Red Monster Full Access Members

    Age:
    24
    Posts:
    672
    Likes Received:
    9
    Joined:
    Apr 29, 2011
    i think we all can agree shaveing that damn thing off our tailgate looks better. im gonna do that on mine eventually

  9. TactialMonkey

    TactialMonkey Full Access Members

    Posts:
    390
    Likes Received:
    21
    Joined:
    Sep 21, 2012
    Location:
    Washington
    I just took mine out and put a VW logo over the hole I mean the expedition is really just a monster wagon
    [​IMG]

    Last edited: Apr 10, 2013
  10. piano_71

    piano_71 Member

    Posts:
    5
    Likes Received:
    0
    Joined:
    Sep 24, 2013
    Location:
    Colorado
    This is an old thread, but I have to say this helped me fix my rear wiper. I didn't have to adjust the spring, just remove and reinstall. On mine, the nut was too loose, and that prevented the motor from operating the wiper. Once reinstalled, everything worked as expected.
