Well my 03 EB Expedition 4x4 5.4
The vents on dash never has worked on defrost . It's been this way when I bought it.
So I decided to try n trouble shoot it pulled the climate control from the dash to replace the known orings in the solenoids that I seen on YouTube. But mine doesn't take vacuum lines it's electronic.

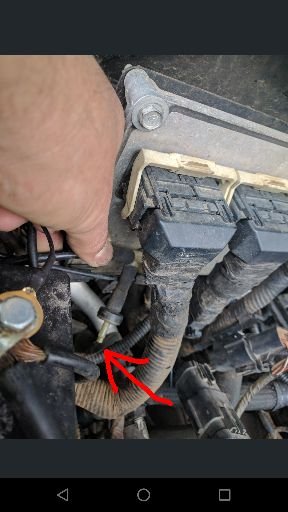

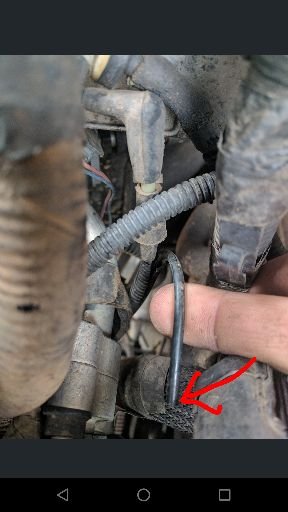

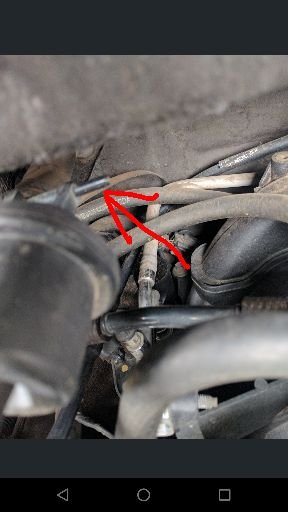

So I go under the hood looking for vacuum lines checking for broken/cracked line and I come across these in the pictures.
So thinking these or 1 of them could have something to do with the vents not working..

If I could get someone to find these under the their hood and tell me where they go. Possibly with pictures :)
Then I can fix mine.
Thanks
fffc93409af2a4c3cfca264a9475ca3c.jpged33b14838820b39bc868e4e2640fec7.jpg9929622560c6bb99f251d022ef14dff5.jpg484287f7f9d6b8bebb22854d1f1f1eed.jpg

Sent from my Nexus 6P using Tapatalk


Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA
Although you have the EATC controls (electronic) the vent controls are vacuum operated. Your blend doors are electrically operated

OP
OP
scoot0073

scoot0073

Full Access Members
Joined
Dec 30, 2016
Posts
519
Reaction score
185
Location
Georgia
OK but still would like to know what theses connect to I can't find no pictures or information to help me on Google

Sent from my Nexus 6P using Tapatalk


Hamfisted

Full Access Members
Joined
Nov 20, 2012
Posts
2,581
Reaction score
1,465
Location
Ft Lauderdale
Looks like your vacuum SUPPLY line is missing from it's connection. It's the same size as that one that's loose there in your 4th picture. See if you can get it reconnected to that fitting in your 3rd picture. That should help with your lack of vent control.

-Mike




OP
OP
scoot0073

scoot0073

Full Access Members
Joined
Dec 30, 2016
Posts
519
Reaction score
185
Location
Georgia
Thank you so much for taking the picture and your advice :0


Sent from my Nexus 6P using Tapatalk

OP
OP
scoot0073

scoot0073

Full Access Members
Joined
Dec 30, 2016
Posts
519
Reaction score
185
Location
Georgia
Looks like your vacuum SUPPLY line is missing from it's connection. It's the same size as that one that's loose there in your 4th picture. See if you can get it reconnected to that fitting in your 3rd picture. That should help with your lack of vent control.

-Mike



I'll connect picture 3 and 4 together hopefully tomorrow..
Do u have anything connected in picture 1 and 2 ?

Sent from my Nexus 6P using Tapatalk


Hamfisted

Full Access Members
Joined
Nov 20, 2012
Posts
2,581
Reaction score
1,465
Location
Ft Lauderdale
Picture 1 & 2 are not vacuum connections, that's just the hinge and pin for the hot water valve. Leave them alone.

-Mike

OP
OP
scoot0073

scoot0073

Full Access Members
Joined
Dec 30, 2016
Posts
519
Reaction score
185
Location
Georgia
Looks like your vacuum SUPPLY line is missing from it's connection. It's the same size as that one that's loose there in your 4th picture. See if you can get it reconnected to that fitting in your 3rd picture. That should help with your lack of vent control.

-Mike



Could u take a picture of where the vacuum supply line goes into the firewall please.
But yes I don't see that line no where..
Thanks

Sent from my Nexus 6P using Tapatalk


Hamfisted

Full Access Members
Joined
Nov 20, 2012
Posts
2,581
Reaction score
1,465
Location
Ft Lauderdale

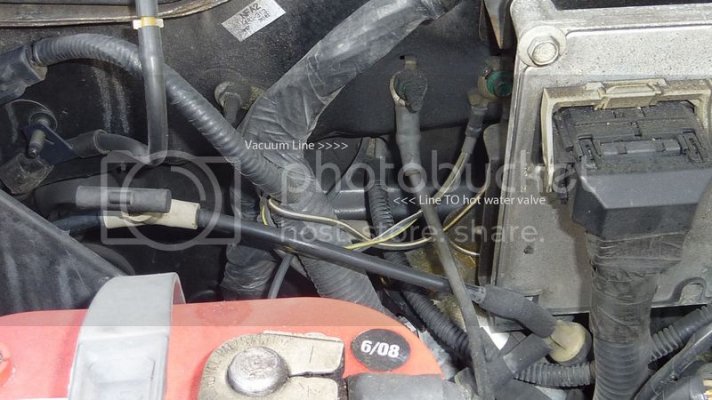

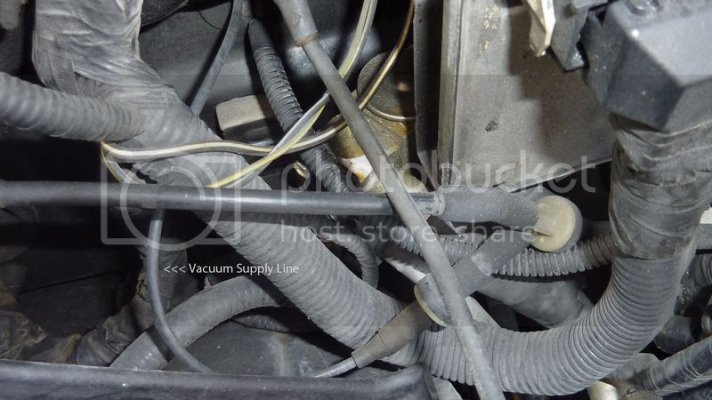

The line covered by plastic shroud is the vacuum line TO the hot water valve. The bare vacuum tube is the SUPPLY line TO the EATC vacuum manifold under the dash.
