4R100 build.

[99540046]

Hey all. My buddy was about to send a 99 Eddie Bauer to the junk yard after the 4R100 gave way and was told by his shop replacement was gonna cost him $3500. His family had it since new and took pretty good care of it. He called me up knowing I'm a car hoarder..(definition of a hoarder is >50% of vehicles are not running...im trying to recover)

Long story short I watched this guy, Jimmy Williams The Bob Ross of slush boxes, the Fred Rogers of automatics

Ford E4OD / 4R100 Class Introduction

Ford E4OD / 4R100 Class Introduction For parts and kits visit: http://transmissionbench.com

www.youtube.com

And I asked myself: How hard could it be? Famous last words......

So far so good. Maybe my posts of this build will be of some use to a few of you at some point.

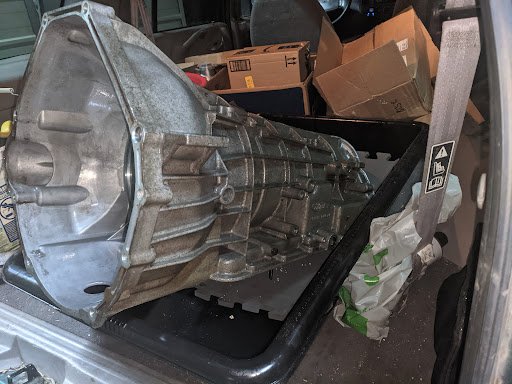

As of tonight I've done a complete tear down and inspection. I've just cleaned and painted the case.

Mr. Willimas is one heck of an instructor and I cant say enough good things about his YouTube videos. I might just pull this off.

It will either be a positive example, or a cautionary tale. Wish me luck!



[tekrsq]

So you were able to tear down and rebuild the 4r100 in your garage with "normal" tools ?

So how is everything working now ?



[Gary Waugh]

I would love to hear how it went. I have rebuilt a few manual transmissions but never an automatic.. did it work when you finished? or are you still working on it? Best of luck.



[99540046]

Sorry, been crazy busy. It came out great! Ill post more details as soon as I can.



[99540046]

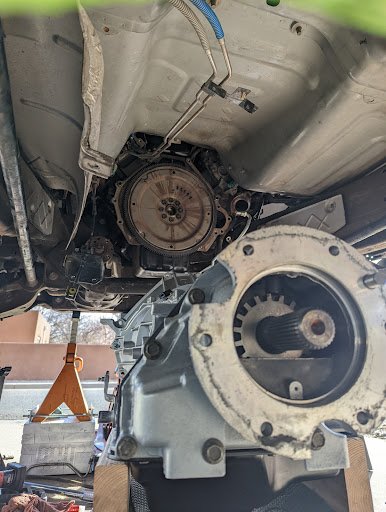

If you take your time and watch that guy's videos multiple times....YOU CAN DO THIS! I did this all solo by the way. With the right jack, a custom adapter plate for the pan, and some DIY jack risers...This 300+ LBS tranny went in with next to no drama! The transfer case was an awkward nightmare to wrangle into place, but I didn't want to deal with the extra bulk and weight of it attached to the tranny while I was trying to slip torque converter in.



[99540046]

So you were able to tear down and rebuild the 4r100 in your garage with "normal" tools ?

So how is everything working now ?

Yes, you can make most of your own tools for special stuff. You do need a small press, but those can be bought on amazon for 70 bucks. he shows you everything you need in the first or second video. I had a tranny pump puller from a friend, but you dont need it!



[tekrsq]

Yes, you can make most of your own tools for special stuff. You do need a small press, but those can be bought on amazon for 70 bucks. he shows you everything you need in the first or second video. I had a tranny pump puller from a friend, but you dont need it!

That's exactly what I needed to know. I'm very mechanical, but didn't know how bad a "fairly modern" automatic would be. The last one I rebuilt went behind a 351 C in a 72 Torino, lol. Did you do any upgrades to it while you had it apart ? I tow a fair amount, and would like to beef it up a little if possible. I've been thinking about buying a junkyard trans and rebuilding it for when mine finally lets loose.



[Expd830]

I just bought a Monster Stage 2 Transmission. That is upgraded from the standard one, which responds quite well.
