"Hall" sensors

Discussion in 'Transmission & Drive train' started by Vigilante, Feb 8, 2015.

  1. Vigilante

    Vigilante Full Access Members

    Posts:
    87
    Likes Received:
    10
    Joined:
    Sep 30, 2011
    Location:
    San Francisco, CA
    So I have a constantly flashing 4 x 4 light on my dash. This research I have done points to "hall" sensors. I have no idea what these are. I replaced my speed sensor on the rear differential and that has made no change. What sensors are on the transfer case that can be replaced? Without looking, my research online has indicated that there is only a shift motor on the transfer case and no sensors. I have yet to change the speed sensor on the transmission. What and where are the sensors that can be replaced?

  2. Bedrck47

    Bedrck47 Full Access Members

    Posts:
    5,641
    Likes Received:
    630
    Joined:
    Jul 4, 2014
    Location:
    Elizebethtown, PA
    It helps to know what year you are talking about and any other information about your expy

  3. Vigilante

    Vigilante Full Access Members

    Posts:
    87
    Likes Received:
    10
    Joined:
    Sep 30, 2011
    Location:
    San Francisco, CA
    1999, 4x4, 4.6

  4. Vigilante

    Vigilante Full Access Members

    Posts:
    87
    Likes Received:
    10
    Joined:
    Sep 30, 2011
    Location:
    San Francisco, CA
    Any thoughts?

    I still have no leads on what anybody is talking about as far as "hall" sensors go.

  5. Bedrck47

    Bedrck47 Full Access Members

    Posts:
    5,641
    Likes Received:
    630
    Joined:
    Jul 4, 2014
    Location:
    Elizebethtown, PA

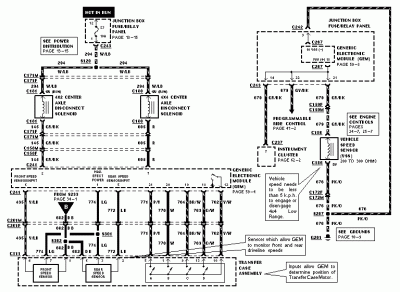

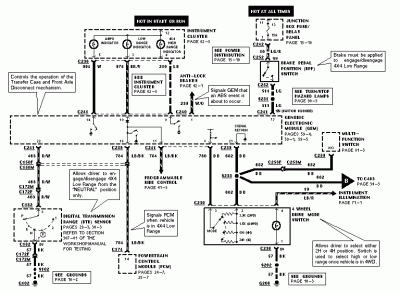

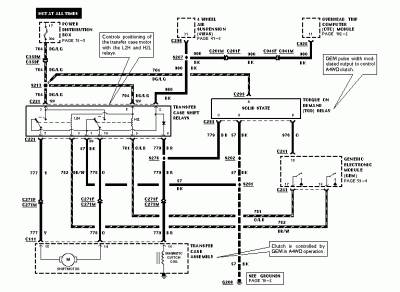

    These are the speed sensor that are on the transfer case
