Power Fold mirrors -- how do they work?

Discussion in '3rd Gen - 2007 - 2017' started by star-art, Dec 5, 2019.

  1. star-art

    star-art Full Access Members

    Posts:
    453
    Likes Received:
    123
    Joined:
    Aug 23, 2010
    Location:
    Pacific Northwest
    OK, this may sound like a really stupid question to ask. I did look though and I could not find the answer -- even in the owner's manual.

    My '17 XLT does not have power-fold mirrors but I want to add this option. I'm curious to know exactly how the power fold switch works. I know you first place the mirror switch in the "neutral" position, then pull back on the switch to fold the mirrors in.

    My question is, once the mirrors have been folded, do you pull back on the switch again to "un-fold" them? Or, do you push forward on the switch to un-fold?

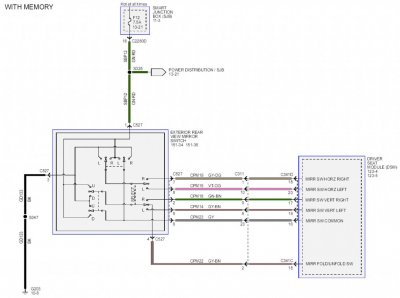

    The factory wiring diagram is a bit confusing. There's one input line to the Driver Door Module for power-fold activation. The diagram appears to show the switch internally connects this input to +12V when you pull back on the knob (i.e. "up"). That makes sense. But, the diagram also appears to show that the switch internally connects this same input to ground if you push forward on the knob (i.e. "down"). That's why I was confused about the operation of the switch.

    Thanks for your help and for putting up with such a seemingly silly question! :)

    EDIT: The owner's manual does say to pull back to fold or un-fold. So I guess I answered my own question. Again, just wanting to confirm. . . Thanks!

  2. oldpaddy

    oldpaddy Full Access Members

    Posts:
    323
    Likes Received:
    64
    Joined:
    May 1, 2012
    Location:
    Cape Cod
    Yup. Pull back to close and open. I'm a big fan of the power windows. Makes parking better. I wish they auto folded.

  3. star-art

    star-art Full Access Members

    Posts:
    453
    Likes Received:
    123
    Joined:
    Aug 23, 2010
    Location:
    Pacific Northwest
    Thank you! :)

  4. Gary Waugh

    Gary Waugh Full Access Members

    Posts:
    183
    Likes Received:
    85
    Joined:
    Jun 27, 2017
    Location:
    Princeton, TX
    As stated, you pull back on the switch to make them retract/fold-in and you pull back on the switch again to make them come out.. I also wish they automatically folded in when you locked the car, I use the feature every time I park the truck.

    Gary

    oldpaddy and MrTommy like this.
  5. RogerD1959

    RogerD1959 2.5 Months Ltr, and Final Bill 22K+ Supporting Member

    Age:
    60
    Posts:
    115
    Likes Received:
    25
    Joined:
    Jun 5, 2019
    Location:
    Fond du Lac, WI United States
    I have not done this yet, but am considering it. With the FORScan app, a laptop, and a GOOD OBDII bluetooth interface, some have said this is possible via the BCM module. The F-150 allows for it in its electronic stuff, and I read some of the Expeditions can be programmed to, 2017 and up. When you look the doors with the remote they fold in, unlock they fold out.

    Sent from my SM-G950U1 using Tapatalk

  6. JExpedition07

    JExpedition07 Winterized Member Supporting Member

    Posts:
    4,884
    Likes Received:
    2,044
    Joined:
    Mar 30, 2017
    Location:
    New York
    I’m not sure if you can add the power fold mirrors if you don’t already have the heated/memory turn signal mirrors with the right harness. Unless it’s all the same one or this was an option on later XLTs? Originally it was only the upper trims. I’ve found my loaded up Eddie Bauer has a lot more to the wiring harnesses and a lot more Canbus involvement than my previous XLT. Lots of the options would have been a nightmare to add to my XLT...although you’ve always been good with this stuff so maybe. Would be cool if you get it to work.

    Last edited: Dec 6, 2019
  7. TXFRDOwner

    TXFRDOwner Full Access Members

    Posts:
    238
    Likes Received:
    69
    Joined:
    Jan 21, 2010
    Location:
    Texas
    If you don’t have memory seats (i.e. a DSM) ..... You can still add power fold mirrors ... the old way with the powerfold relay.

    That’s how I added PF mirrors to my 07 F-150 and Expedition


    Sent from my iPhone using Tapatalk

  8. JExpedition07

    JExpedition07 Winterized Member Supporting Member

    Posts:
    4,884
    Likes Received:
    2,044
    Joined:
    Mar 30, 2017
    Location:
    New York
    What’s the difference in procedure if you DO have the Memory function seats/power pedals/heated&turn signal mirrors? My Eddie Bauer has all of the above except power-fold function.

  9. TXFRDOwner

    TXFRDOwner Full Access Members

    Posts:
    238
    Likes Received:
    69
    Joined:
    Jan 21, 2010
    Location:
    Texas
    I’d start with confirming whether or not the wiring is already there

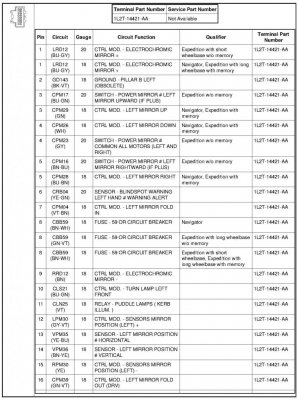

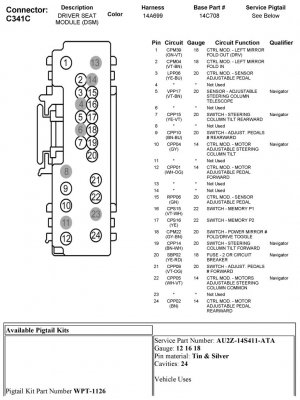

    Mirror Switch Connector C527 - Pin 4 / wire color GY-BN, which goes to DSM - Connector C341C / Pin 18.

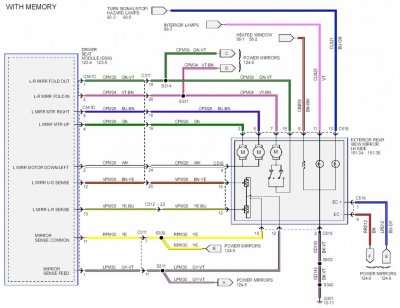

    Then from DSM to LH Mirror:
    C341C pin 1 (GN-VT) to C516 pin 16
    C341C pin 2 (VT-BN) to C516 pin 7

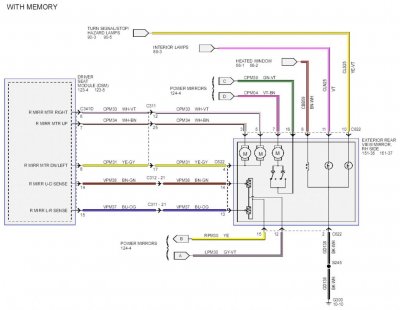

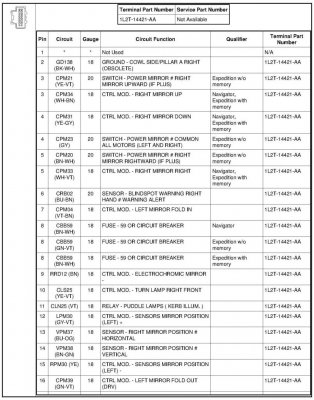

    Then from DSM to RH Mirror:
    C341C pin 1 (GN-VT) to C622 pin 16
    C341C pin 2 (VT-BN) to C622 pin 7










    Sent from my iPhone using Tapatalk





    Last edited: Dec 6, 2019
    The Wiped Cam and JExpedition07 like this.
  10. TXFRDOwner

    TXFRDOwner Full Access Members

    Posts:
    238
    Likes Received:
    69
    Joined:
    Jan 21, 2010
    Location:
    Texas

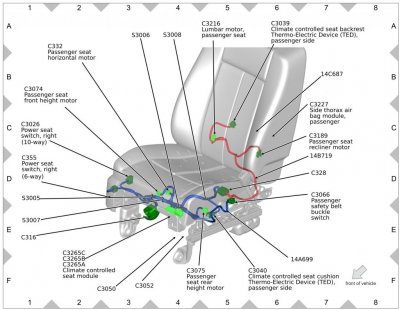

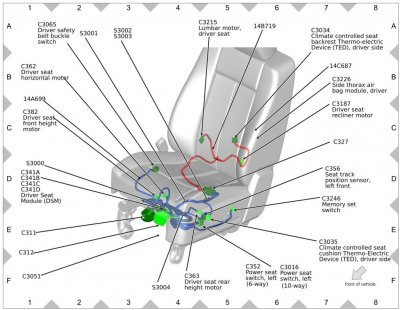

    C516.jpg C622.jpg Seat - Front Driver.jpg
