My truck is on it's last legs but I would love to have the rear ac working for my 5 year old who roasts in the back. Can I just manually move the blend door? It blows hot in the back, no clicking. I DO NOT want to fix this properly just move the blend door to cold side. Which one is it? From what I have read there are 2 actuators? Thanks in advance.
Rear A/C quick fix?
- Thread starter ONEBADMK8
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
stamp11127
Full Access Members
On the 2005 the blend door actuator is at the top just underneath the RH cup holder of the rear RH trim panel.
If you half ass fix it then won't he/she will freeze in winter? Why not do it right to begin with?
If you half ass fix it then won't he/she will freeze in winter? Why not do it right to begin with?
Hamfisted
Full Access Members
I would just replace the actuator module and fix it right. Getting to it is the same amount of work, and for $60 you can fix it right. The vent blend door (high or low vents) module is the easy one, under the cup holder. The temp control module is a little harder since it's down on the side and requires removing the quarter panel trim. If it is blowing hot then it's the harder one on the side of the unit. You can pull the tray up and get your hand in there to unplug it easy enough, but if you want to replace it you'll have to pull the quarter panel and trim off to gain access. Maybe disconnecting the hot water hoses that run to the rear would be easier for some kind of cheap fix. I'm not sure since that's not the way I fix things.
-Mike
Ford-XW7Z-19E616-BA-TEMPERATURE BLEND DOOR module-assembly on Amazon $60
Expedition Rear VENT Blend Door Actuator on Amazon $35 ....

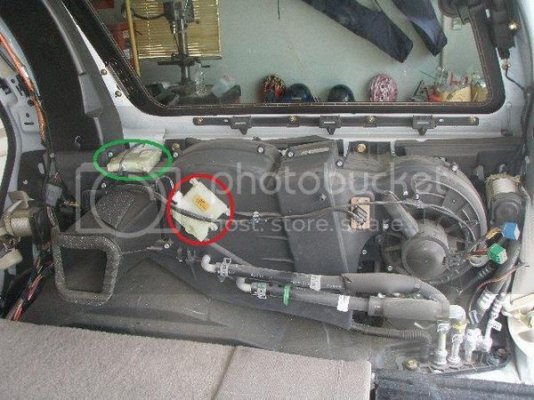

The module circled in green is the vent blend door actuator module.... red is temp blend door module....
-Mike
Ford-XW7Z-19E616-BA-TEMPERATURE BLEND DOOR module-assembly on Amazon $60
Expedition Rear VENT Blend Door Actuator on Amazon $35 ....
The module circled in green is the vent blend door actuator module.... red is temp blend door module....
Last edited:
She will not freeze, never has, heat from front gets back there pretty good. The heat in NJ is ridiculous and unbearable most of the Summer. This truck is on it's last legs this is why I am not fixing it right. Ill just swing the door over to the cold side. Thanks for the location.
Flexpedition
Full Access Members

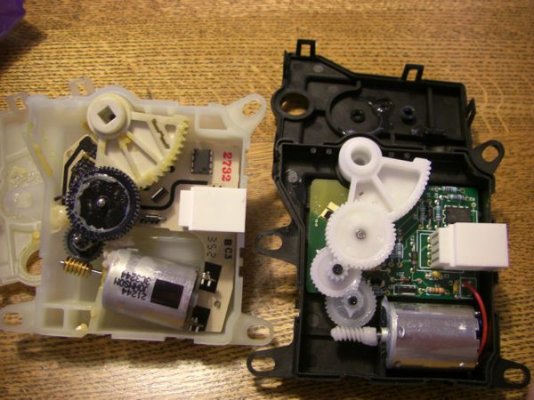

When you remove the bad actuator, pop it open and inside you will see a combination of plastic gears driven by a small motor, example shown below. One or more of those gears will likely have broken or worn teeth. Try repositioning the broken one(s) 180°. Could be a more viable $0.00 solution.
Another free opportunity would be to run the self check. I'm not 100% that this carries over to the Expedition, but other Fords with similar looking EATC supposedly will disable the blend door if it detects a fault. Unplugging the car battery or the actuator will supposedly reset everything, but diagnosing the EATC will tell you for sure what the problem is:
Press and hold the OFF button on the head unit, then press FLOOR while still holding down OFF. Now quickly release both buttons and press the AUTOMATIC button.
At this point a little line will appear to rotate in the middle of the display. This indicates testing is in progress.
The test can take what seems to be a long while when you're waiting for it! Just let it run and don't worry.
At the end, the display will begin flashing numbers, or it will simply light up everything on the display and halt.
If only "888" appears for the number, and everything else on the display is lit up, then you have passed the advanced self-test.
If there are numbers, write them down as they appear. Here's what they mean:
022, 024 - Blend door actuator shorted
025 - Blend door actuator not responding properly
030 - cabin temp sensor shorted (either wiring or bad sensor)
031 - cabin temp sensor not connected or failed (open circuit)
040, 042 - outside (ambient) sensor shorted (wiring or bad sensor)
041, 043 - outside (ambient) sensor not connected or failed (open circuit)
050, 052 - solar radiation sensor shorted
This is assuming you have the digital, not manual, climate control. Good luck either way.
The photo Hamfisted posted... you do not need to remove the entire interior trim panel to access/swap the actuator. You just need to remove cupholder trim and the actuators 3 bolts, 8mm IIRC. However, to get a tool (like a screwdriver) down into the keyway to move the blend door, that might just require removing the entire interior trim panel. And hopefully that door isn't spring loaded, or on a horizontal design which gravity will just flop back closed, or a verticle design which might change it on acceleration. Not sure if the actuator just moves the door, or if it moves AND holds the door. Which for me would make the $35 seem worth it.
Another free opportunity would be to run the self check. I'm not 100% that this carries over to the Expedition, but other Fords with similar looking EATC supposedly will disable the blend door if it detects a fault. Unplugging the car battery or the actuator will supposedly reset everything, but diagnosing the EATC will tell you for sure what the problem is:
Press and hold the OFF button on the head unit, then press FLOOR while still holding down OFF. Now quickly release both buttons and press the AUTOMATIC button.
At this point a little line will appear to rotate in the middle of the display. This indicates testing is in progress.
The test can take what seems to be a long while when you're waiting for it! Just let it run and don't worry.
At the end, the display will begin flashing numbers, or it will simply light up everything on the display and halt.
If only "888" appears for the number, and everything else on the display is lit up, then you have passed the advanced self-test.
If there are numbers, write them down as they appear. Here's what they mean:
022, 024 - Blend door actuator shorted
025 - Blend door actuator not responding properly
030 - cabin temp sensor shorted (either wiring or bad sensor)
031 - cabin temp sensor not connected or failed (open circuit)
040, 042 - outside (ambient) sensor shorted (wiring or bad sensor)
041, 043 - outside (ambient) sensor not connected or failed (open circuit)
050, 052 - solar radiation sensor shorted
This is assuming you have the digital, not manual, climate control. Good luck either way.
The photo Hamfisted posted... you do not need to remove the entire interior trim panel to access/swap the actuator. You just need to remove cupholder trim and the actuators 3 bolts, 8mm IIRC. However, to get a tool (like a screwdriver) down into the keyway to move the blend door, that might just require removing the entire interior trim panel. And hopefully that door isn't spring loaded, or on a horizontal design which gravity will just flop back closed, or a verticle design which might change it on acceleration. Not sure if the actuator just moves the door, or if it moves AND holds the door. Which for me would make the $35 seem worth it.
Last edited:
barberjb
Member
It is possible to replace either of these modules without removing the trim panel. That's how I did it at least. I didn't bother to put all the screws back, but I was able to get them all out with a small rachet. Just pull out that tray on top and and reach down in there.
03ExFX4
Active Member
I would just order the Dorman Rear Actuator and replace it. I think the part number was 604-202. I got mine off of amazon for around $30 and it has worked great. Also get some trim removal tools. Takes about 5-10 minutes to remove the necessary trim. Once that is off, you can lean the lower trim piece covering the blower unit away from the unit and remove the old actuator with ease.
I have done it twice, once for the actuator and once for the expansion valve, and I did not find it bad at all.
You can crank the old one to blow just cold air, as that is what the dealer I took mine to did to "resolve" the issue. Just make sure you leave it unplugged so that it does not actuate as they did.
I have done it twice, once for the actuator and once for the expansion valve, and I did not find it bad at all.
You can crank the old one to blow just cold air, as that is what the dealer I took mine to did to "resolve" the issue. Just make sure you leave it unplugged so that it does not actuate as they did.
Skauber
Full Access Members
Could be broken temp blend door, or it could be low on refrigerant or some other AC issue. Do you see water condensation dripping from above the tail pipe?
