The "Check Charging System" warning that won't go away...

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

bgrattan

Member
Joined
Mar 9, 2019
Posts
24
Reaction score
4
Location
Oregon
(2006 Expedition, 194K miles)
A few months ago, I got my first "Check Charging System" error. It would come on intermittently, and go away when the engine revved up.
I took the alternator to the shop, surprisingly, it tested "OK."
The problem went away for a while. Recently it came back, only worse. I had bought a voltage meter that plugs into the cigarette lighter, so I could tell the battery was not getting charged at times (was sitting around 12V and then going lower).
Finally, on a long drive, it did us in and the battery got so low that the Expy died. The next day, I got a rebuilt alternator. Installed it without issues.
Fired up the Expy, the battery is charging no problem, but the "Check Charging System" still comes on. I look at the voltmeter, it is reading 13.4. I figure all the deep discharging damaged the battery.
I got a new one. Fine, now it charges to 14.2. "Check Charging System" now comes on every time I start the engine after it runs for approximately 15 seconds. However... the battery is staying charged at about 14V and when I measure the current from the alternator it is about 25A. When I switch on the lights, it jumps to 34A. It seems like everything is in fact working, but I'm still getting the "Check Charging System."

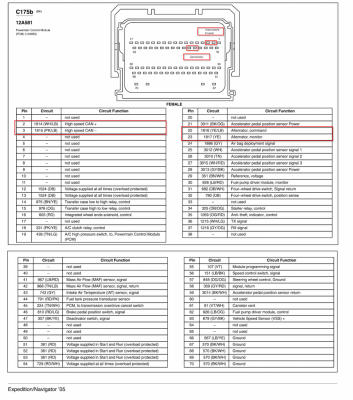

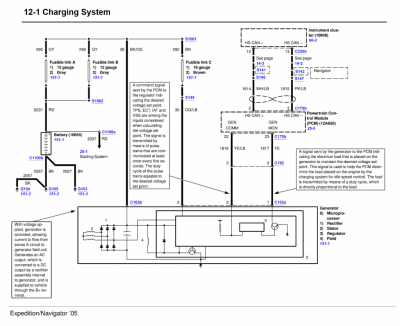

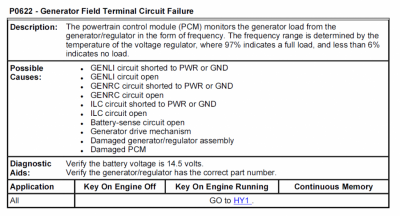

I borrowed the scanner from O'Reilly's and it only told me that I got error P0622-FF which isn't very specific as far as I can tell.

How risky is it to take the Expedition for a long drive tomorrow, and do you have any recommendations for figuring out what the root cause is?

Photos of scanner results here:
https://www.dropbox.com/s/4y4t7ax4wbcmk32/Photo Jul 29, 7 23 23 PM.jpg?dl=0
https://www.dropbox.com/s/tuk6s85ttnk5b1o/Photo Jul 29, 7 23 35 PM.jpg?dl=0
https://www.dropbox.com/s/irzfep2fn7vvirv/Photo Jul 29, 7 26 34 PM.jpg?dl=0


thesavo

Full Access Members
Joined
Aug 3, 2016
Posts
165
Reaction score
34
Location
Schenectady, NY
I would check high current cables for green custy (corrosion). You replaced the alternator already, and one would presume the battery isn't that old.

Check the alternator-to-battery. Battery-to-body, battery-to-engine block, and battery-to-starter.

Sent from my SM-N975U using Tapatalk


thesavo

Full Access Members
Joined
Aug 3, 2016
Posts
165
Reaction score
34
Location
Schenectady, NY
Could be as simple as leaving off the comm harness to the alternator, or corrosion on connector terminals/wires

Sent from my SM-N975U using Tapatalk


Jeff G

Active Member
Joined
Mar 6, 2020
Posts
29
Reaction score
14
Location
Phoenix
When I had that issue, it turned out one of the plug connectors at the top of the fuse box wasn't seated all the way in. I too replaced the battery, alternator and even the PCM before I found the connector loose and not seated. I had all the same symptoms you described.

OP
OP
B

bgrattan

Member
Joined
Mar 9, 2019
Posts
24
Reaction score
4
Location
Oregon
When I had that issue, it turned out one of the plug connectors at the top of the fuse box wasn't seated all the way in. I too replaced the battery, alternator and even the PCM before I found the connector loose and not seated. I had all the same symptoms you described.
Where is that fuse box? It isn't the one by the foot of the passenger side door is it?


Jeff G

Active Member
Joined
Mar 6, 2020
Posts
29
Reaction score
14
Location
Phoenix
That's the one. There are several plug in connectors at the top. I didn't see it at first and only found it by accident when I checked them all for tightness and it went "click".
