What am I doing wrong?

[MCPGA]

I have a 09 King Ranch with a leveling kit installed with stock 20” wheels and 275/60/20 tires. I want to add 1.5” spacers to bring the tires out flush. I bought hub centric billet spacers with 87.1mm bore but my wheels don’t seem to fit over the hub of the spacer and seat flush against the mating surface. Did I buy the wrong size? Help please?



[JamaicaJoe]

Spacers are going to bring the tires AND rims outward. What are you trying to make the tires flush with?



[MCPGA]

The outside edge of the fender



[GlennSullivan]

Post up some pictures of the hub, the spacer and the inside of the wheel.



[MCPGA]



[MCPGA]

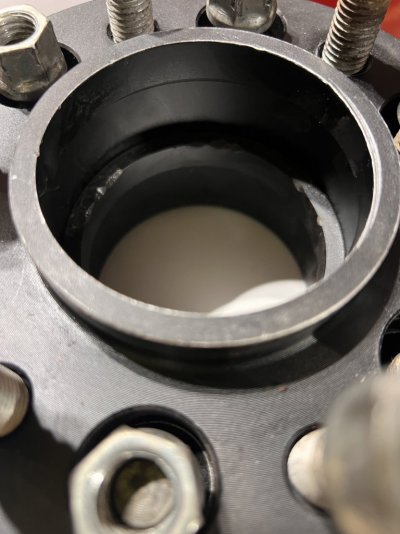

The wheel hub is beveled and the spacer hubs are not. Not sure if that is correct or not.



[GlennSullivan]

Pull the spacer off the vehicle and place it on the wheel off the vehicle and see how it fits / lines up.



[MCPGA]

I did that and it will not seat all the way down on the wheel. FYI - I have a used set and a new set and neither seats properly. ‍



[MCPGA]

Used and new set of spacers that is…



[GlennSullivan]

I did that and it will not seat all the way down on the wheel. FYI - I have a used set and a new set and neither seats properly. ‍

Speak to manufacturer about mis-fit or take the spacers and 1 wheel to your local friendly machine shop and have them adjust the fitment. FYI, I'm not a super fan of wheel spacers. If they are a close tolerance fit to both the car hub and the wheel itself that is better but spacers that just sit between the 2 are a recipe for problems.
