Diagram search help

[Blood_Wolf89]

I am looking for a interior fuse box diagram for the back of the fuse box labeling what the connectors are for.

2005 Expedition XLT - Triton 5.4 24 valve 4x4

Thanks, Wolf



[Aspen03]

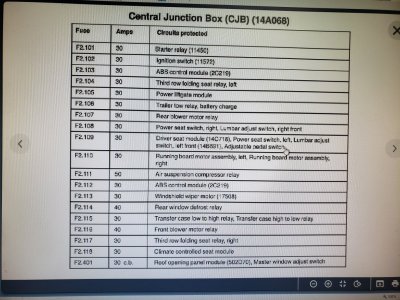

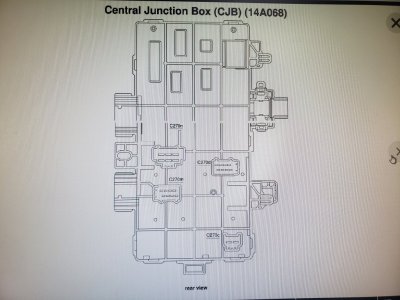

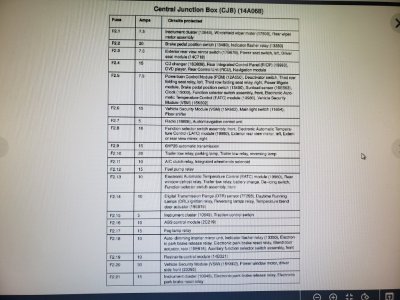

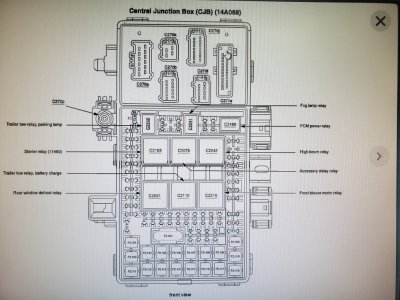

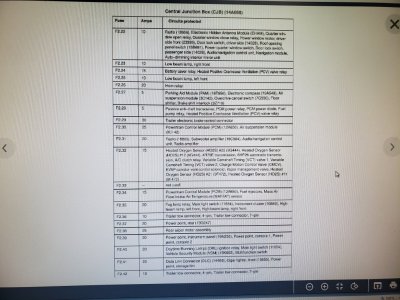

Think I got what you need.



[Aspen03]

Last one...

If you need connector pinouts from vehicle side let me know.



[Procrastinator]

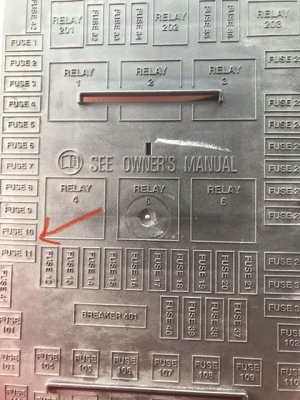

I have an ‘04 Eddie Bauer 4x4 that didn’t come with an owner’s manual...so I’m lost as to which fuse is for what. My reverse lamps quit working and I was wondering if this is the fuse (Fuse 10) for it? I’m a big guy and when I finally get in that little floor board...I want to be able to go right to it. Thanks for the help!



[mrbadwrench]

I have an ‘04 Eddie Bauer 4x4 that didn’t come with an owner’s manual...so I’m lost as to which fuse is for what. My reverse lamps quit working and I was wondering if this is the fuse (Fuse 10) for it? I’m a big guy and when I finally get in that little floor board...I want to be able to go right to it. Thanks for the help!

View attachment 32915

My 2008 didn't have an owners manual so I downloaded one.

When I had to check all of those fuses looking for a parasitic draw, I removed the right front seat. I'm only average size but I'm old.



[Procrastinator]

Th

My 2008 didn't have an owners manual so I downloaded one.

When I had to check all of those fuses looking for a parasitic draw, I removed the right front seat. I'm only average size but I'm old.

Thanks! I was thinking of downloading one too. I haven’t contemplated removing seat, but that’s definitely an idea. Yeah, I’m not as young as I used to be either. My body doesn’t contortion well like it used to.



[Anthony DeVor]

Nice job, where did you find that info, I want to look into info like that for my 2017 expedition
