I added It to a 2004. Everything was there, just plug it all in works just like it suppose to.


MossyOakXLT

Member
Joined
Jul 11, 2014
Posts
7
Reaction score
3
Location
Texas
This is a question for 1st gens though...did they make an integrated plug for ours? would be awesome if so!!


robbieg

Full Access Members
Joined
Jun 23, 2011
Posts
96
Reaction score
15
Location
FL
I have it on my '98. I put it in when I got it in 1999. The harness is already in the truck if you have the tow package. There is a small kit that came with the truck in a plastic bag and it was in the jack compartment. It had the instructions and a relay that had to be plugged into the engine compartment fuse box.


robbieg

Full Access Members
Joined
Jun 23, 2011
Posts
96
Reaction score
15
Location
FL
This is the original kit, it had the instructions, harness to connect to the lead under the dash and then wire to your controller, and two different relays. One for the trailer brakes that I used and the other smaller relay was for 12v charging of batteries on the trailer.


Attachments

  • IMG_0806.jpg
    92.7 KB · Views: 44
Last edited:

robbieg

Full Access Members
Joined
Jun 23, 2011
Posts
96
Reaction score
15
Location
FL
Here's the instructions Page's 1-5


Attachments

  • Trailer plug.jpg
    Trailer plug.jpg
    81.9 KB · Views: 40
  • Trailer plug_0001.jpg
    Trailer plug_0001.jpg
    102.5 KB · Views: 41
  • Trailer plug_0002.jpg
    Trailer plug_0002.jpg
    102.3 KB · Views: 47
  • Trailer plug_0003.jpg
    Trailer plug_0003.jpg
    102.3 KB · Views: 41
  • Trailer plug_0004.jpg
    Trailer plug_0004.jpg
    102.6 KB · Views: 34
B

bedrck46

well its been a week since the OP posted his question and he hasn't been back since

guess he really wasn't interested in answers


robbieg

Full Access Members
Joined
Jun 23, 2011
Posts
96
Reaction score
15
Location
FL

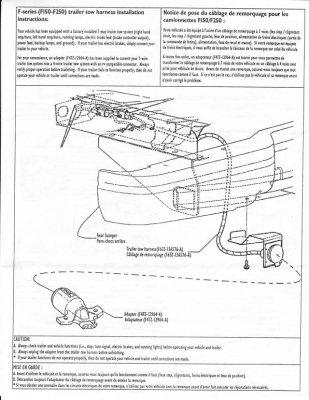

Page 6


Attachments

  • Trailer plug_0005.jpg
    Trailer plug_0005.jpg
    99.8 KB · Views: 35

robbieg

Full Access Members
Joined
Jun 23, 2011
Posts
96
Reaction score
15
Location
FL
well its been a week since the OP posted his question and he hasn't been back since

guess he really wasn't interested in answers

Yeah....Oh well, at least the info is here if anyone needs it in the future. I doubt theres very many of these original kits floating around out there.


robbieg

Full Access Members
Joined
Jun 23, 2011
Posts
96
Reaction score
15
Location
FL
This is what the harness for connecting to your controller looked like.


Attachments

  • Harness.jpg
    96.7 KB · Views: 39
B

bedrck46

well it would be nice to at least say thanks for the replies not just post something and not reply back


Bowesmobile

Full Access Members
Joined
Jul 7, 2012
Posts
397
Reaction score
45
Location
Clarkston, Mi
I have it on my 1997 and it came minus the trailer tow package. Relay was plugged in, the harness was under the dash and I had to add the seven pin connector. But my connector to plug into the harness at the back of the truck was different. So I directly wired it in and heat shrunk the connections. You just follow the wire colors and its VERY simple.
