Still Need Help Identifying This Setup

[Garrett]

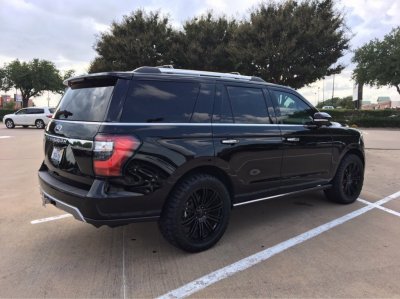

i know the wheels (KMC) and tires (Nitto Ridge), but I don’t know:

1. Tire size
2. Wheel size
3. If a level kit is involved.



[Sgt Darkness]

Hey the tire size should be on the sidewall, like 255x50x18 as an example. The wheel size would be the 18 or maybe 20 that's on the tire. Normally the tire info is on both sides of the tire. It does look like it's a little high in the back so it could be an air bladder lift or a lift kit. You should be able to tell by looking near the rear end possibly near the shock mount area. Good luck!!



[Garrett]

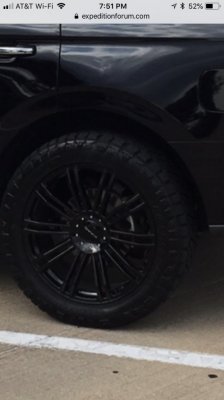

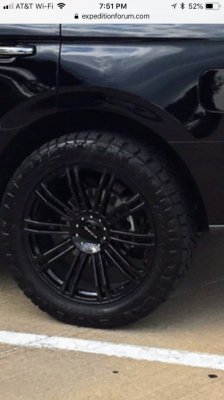

That’s the problem. All I have is this picture and the one below a fellow forum member posted



[Blackscreen67]

Leveled with 33s on 20s.



[Garrett]

You think it looks leveled?



[aggiegrad05]

That’s the problem. All I have is this picture and the one below a fellow forum member posted

View attachment 27385

Garrett - I feel so bad that I didn’t take more pics when I saw it. I have been keeping an eye out and I will definitely take more and/or talk to the driver if I see it again (it was at the grocery store around the corner from my house the first time, so it’s feasible).



[Blackscreen67]

You think it looks leveled?

That's a bad angle, but I'm looking at clearances from the fender to the tire.

May even be 31.



[Garrett]

Garrett - I feel so bad that I didn’t take more pics when I saw it. I have been keeping an eye out and I will definitely take more and/or talk to the driver if I see it again (it was at the grocery store around the corner from my house the first time, so it’s feasible).

No worries @aggiegrad05 ,,, I’m thankful for what you did provide already!!!



[5150 pops]

You think it looks leveled?

Fwiw...me thinks it was just a wheel and tire swap.
Stock height front and rear.

EDIT...it's sporting Texas dealer tags, depending on where the op of photographer, it could be their closest Ford dealer, or one of those "upscale" used dealers you guys have in Collin, Denton, North Dallas counties...



[5150 pops]

This is a pic of an xlt ( not the same as pic in first post) that looks a lot like the same wheel, it's from Grapevine Ford.
There's a close up shot in the gallery for one of the wheels...
https://www.cargurus.com/Cars/inven...=false&filtersModified=true#listing=204637917



[Garrett]

See, that one is definitely leveled. The original looks like smaller tires and stock imo.



[Garrett]



[Bow512]

For sure stock height and 22’s. Tires are probably slightly wider and maybe a tad taller than stock, but not by much if so.



[Garrett]

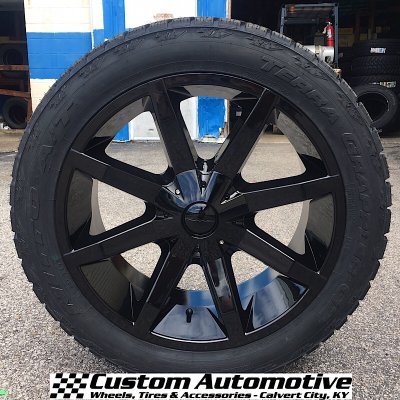

So how about 22 inch KMC and 285/50/22 Nitto Ridge Grappler? Maybe Terra grappler???



[Randy_270]

I'd put money on the fact that its stock suspension with 285/45r22s.

Garrett, if you want 285/50r22s, you're gonna be adding about 16-17 pounds per tire, according to Nitto's website, because you'll be going to an LT tire. And if you're using aftermarket rims, make sure they don't have too low of backspacing or they might not fit. Mine have a 5.4" backspacing and I could probably go upsize but any suspension movement while turning might cause an issue.



[Garrett]

Good to know, thanks. Those seem a bit offset too, agree?

I can’t tell if they are ridge or terra grapplers either.



[Blackscreen67]

Guys the rotor is 13", there's no way that rim is more than a 20".

They're definitely not terra grapplers, outer tread edge is more aggressive on those.



[Garrett]

Guys the rotor is 13", there's no way that rim is more than a 20".

They're definitely not terra grapplers, outer tread edge is more aggressive on those.

So what do you think they are? To me, the vehicle doesn’t look lifted. Has to be 20-22 wheels but that limits tire options. The sidewall looks like terra grappler (wing-ish design), but I agree, the outer tread doesn’t match any of the Nitto.



[Randy_270]

The tires are Ridge Grapplers, and I'd put money on the fact that those are 22s.



[Randy_270]

Here are 285/45r22s


Here are 285/55r20s
