02 expedition heated mirror to non heated mirror wiring

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

K

Kingee03

New Member
Joined
Jun 18, 2026
Posts
1
Reaction score
0
Location
TX
Has anybody rewired the heated mirror (11 wire harness) to the 5 wire harness? Any help would be greatly appreciated!


Attachments

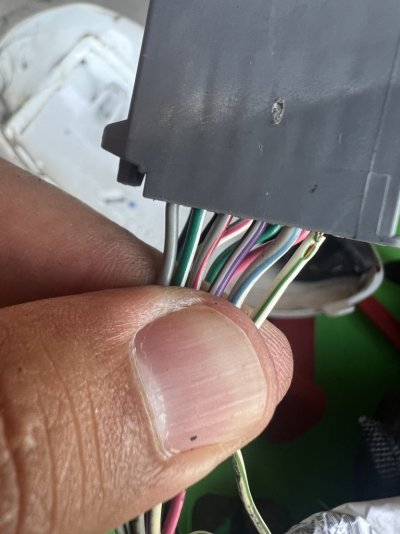

  • IMG_3199.jpeg
    102.9 KB · Views: 0

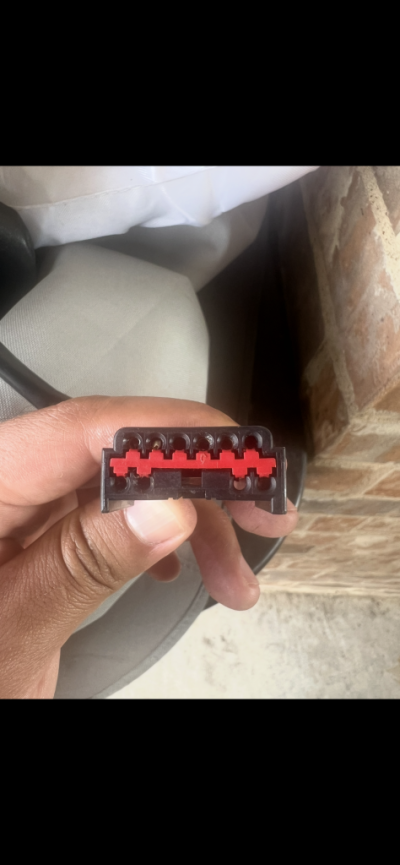

  • IMG_3202.png
    418.1 KB · Views: 0
A

AWAR

Full Access Members
Joined
Oct 22, 2025
Posts
288
Reaction score
168
Location
oregon

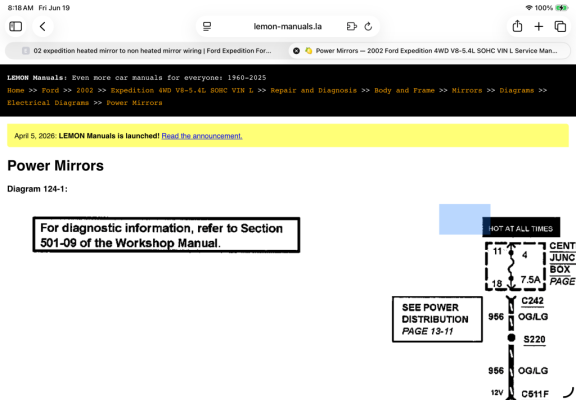

can you follow this thread source and read schematics?
