'22 Timberline Headlight wiring

[FunkyFuzz1833]

I'm trying to install some Raptor style grill lights, and I need to wire them into the Daytime Running Lights. Does anyone have a wiring diagram for the headlight assembly? Thanks in advance. Wire color photo is attached!



[Mack444]

Following bump



[Dennis48755]

Maybe this might help. Note, the view of the connector got squished in printing.

Dennis



[FunkyFuzz1833]

Maybe this might help. Note, the view of the connector got squished in printing.

Dennis

Thanks so much. I'll have to give this a try tomorrow! That's the diagram I was trying to find! Thanks again!



[FunkyFuzz1833]

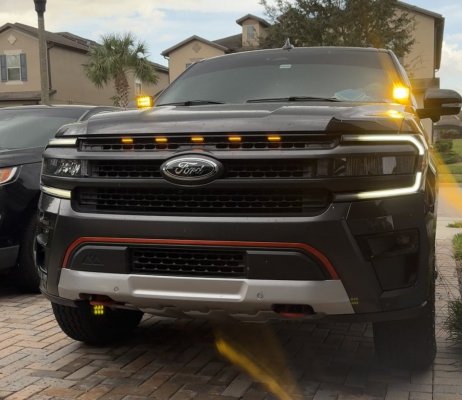

That wiring diagram was perfect. I got everything wired up and put back together today!



[Dennis48755]

Looks good!

Glad I could help.

Dennis



[Mack444]

Those are the best markers I have seen in a long time! Good size, good qty, good spacing.
Link?



[FunkyFuzz1833]

Those are the best markers I have seen in a long time! Good size, good qty, good spacing.
Link?

The website is F150leds.com. The link is as follows.

2021 - 2023 F150 Raptor Style Extreme LED grill Kit

Our Premium Ford F150 Raptor Style LED Grill lights are a perfect match for your F-150. We provide everything you need to add raptor grill lights to your 2021 Ford F150. Built by F150 owners for F150 owners.

www.f150leds.com

You can purchase them in 3, 4, or 5. I ended up cutting the connectors off, drilling through the grill, running the wiring through, and splicing the connectors back on.
Turned out better than I expected!



[Mack444]

Thx for that! Can you get another pic or few out in the open with the DRLs all on?



[Shakeandbake]

That wiring diagram was perfect. I got everything wired up and put back together today! View attachment 79474

What ditch mount brackets did you use? Just any f150 one?
