Need help on wiring on LED taillight

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Lukewang01

Well-Known Member
Joined
Jul 27, 2019
Posts
57
Reaction score
34
Location
Upstate NY

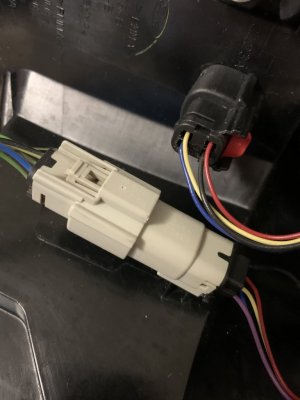

I'm working on an experiment to retrofit XLT with LED tail module. I came across a red wire that I couldn't get anything to light up when I apply 10v across it. Does anyone have any idea on what function does this wire has? I know on halogen tail module it controls the HI state of break light.
