4wd Vacuum Hub Line

[WhiteFalcon]

I have managed to disconnect my drivers side vacuum line for my 4wd actuator hub.. It is the skinny one and came disconnected somewhere over the shock tower. I can’t find the other end to reconnect. Does anyone know where the connection is located or from where it draws its vacuum?



[Hamfisted]

The line runs over to the control solenoid on the firewall behind the battery. Maybe you can blow air (smoke) into the line over there and listen/look for it over on the driver's side to see if you can locate the end.








.



[WhiteFalcon]

Thank you. I’ll try blowing smoke through it.



[BlackCoffee]

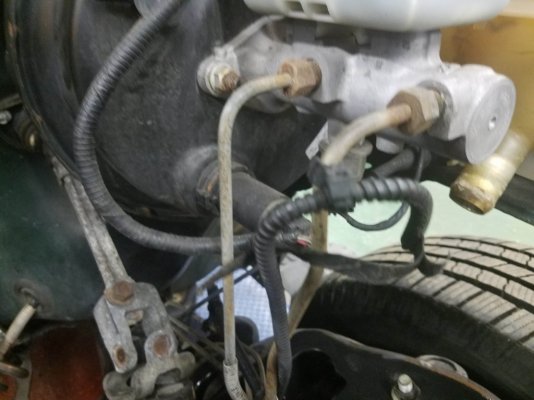

Came loose? Just make sure you aren't looking at the vent line. It comes up and is held to the master cylinder by a plastic clip. This vents the vacuum and is open to the atmosphere.

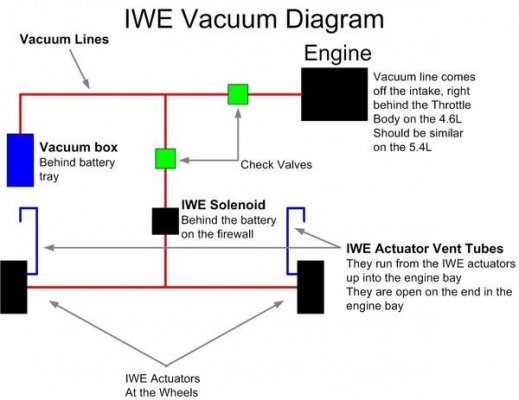

This simple diagram may help: https://www.justanswer.com/ford/c8ei5-need-iwe-vacuum-hose-diagram-surrounding-iwe.html
