Gotta get driver's window UP!

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Bruce Mitchell

Well-Known Member
Joined
Sep 7, 2016
Posts
76
Reaction score
24
Location
Birnamwood, WI
Gee, you'd think that a power window switch would last more than a quarter million miles...

Switch for driver's window went south, and that window is stuck in the "down" position. I've got a replacement on order, but I'm tired of the duct-tape-and-plastic-to-keep-the-rain-out routine, not to mention the security issue.

Can I jumper the connector and get the window to go up one more time? If so, which terminals do I use?

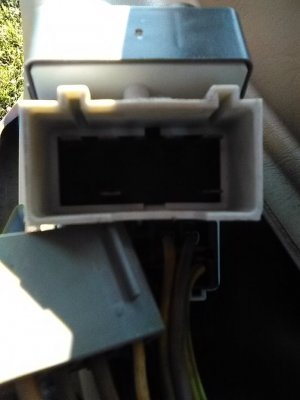

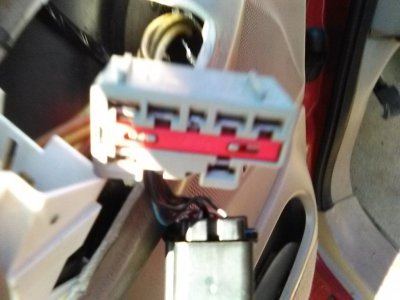

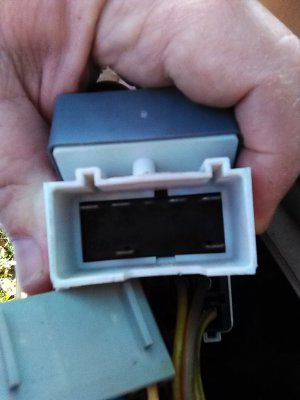

Electricity has scared the heck out of me ever since I flew that kite...007.jpg 008.jpg 009.jpg 010.jpg 007.jpg 008.jpg 009.jpg 010.jpg 007.jpg 008.jpg 009.jpg 010.jpg


stamp11127

Full Access Members
Joined
Mar 10, 2012
Posts
6,218
Reaction score
1,250
Location
Temple, Georgia
You will need the wiring diagrams for your year. The window switch reverses polarity for the up/down function so you will need to know what wires to jump.
I don't have the diagrams with me but if you add the model and year of your Expy to your profile signature another member - Bedrck47 - may post them for you.


Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA

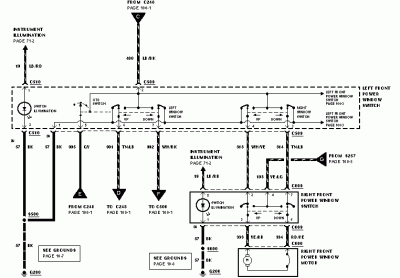

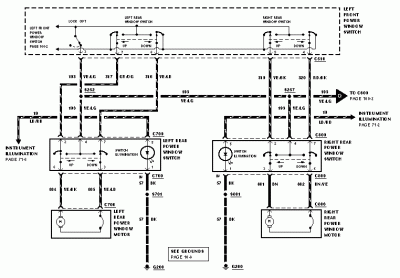

Prints Look at 100-01 if you disconnect the connector at the motor you could then put 12 volts to the motor leads one lead +12 battery pos terminal other lead to battery neg terminal




OP
OP
Bruce Mitchell

Bruce Mitchell

Well-Known Member
Joined
Sep 7, 2016
Posts
76
Reaction score
24
Location
Birnamwood, WI
Yeah, I gave the switch a blast of WD-40 and got two more weeks out of it; it's given up the ghost for good now. Thanks, though!

OP
OP
Bruce Mitchell

Bruce Mitchell

Well-Known Member
Joined
Sep 7, 2016
Posts
76
Reaction score
24
Location
Birnamwood, WI
Thanks for the diagram, Bedrck47; I appreciate the effort and assist. Trying like the devil to avoid taking off the door panel, though.


Bedrck47

Full Access Members
Joined
Jul 4, 2014
Posts
5,641
Reaction score
652
Location
Elizebethtown, PA
Never use WD-40 on electrical contacts Its not a cleaner if you use anything get a can of CONTACT cleaner

Your welcome for the prints


Adieu

Full Access Members
Joined
Dec 22, 2016
Posts
3,700
Reaction score
786
Location
SoCal
Prolly try feeding it with a new 9V or 2 noticeably depleted 9V each measuring ~6V

Many 12v systems can get SOME manner of response from a 9V battery, but it's usually not strong enough to burn stuff out if you mess up
