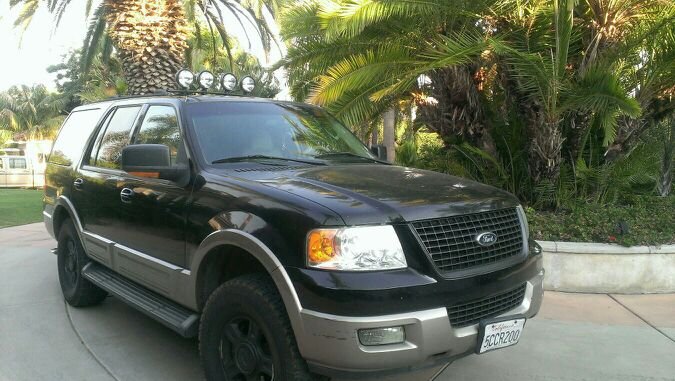

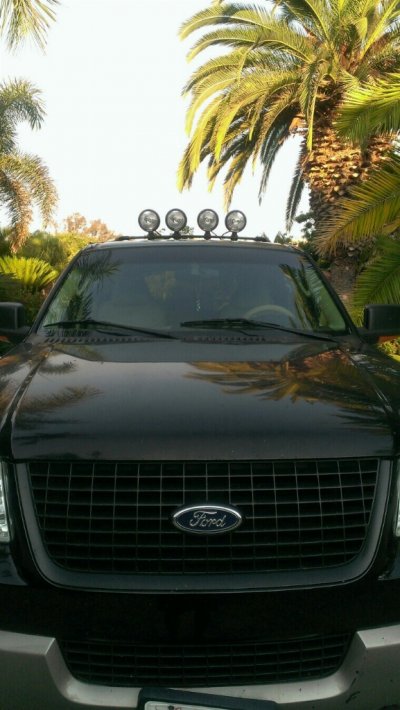

Hey guys after lifting the expo slightly, added a few procomp 100watt explorer lights. I picked them up for $10 ea on CL. Wound up re painting and re finishing them. I mounted all for on the front luggage rack carrier. I spaced them by placing each one in a different recess in the roof for water drainage. To wire I used 14awg per 2 lights. I ran 2 to the left side and 2 lights to the right. I sheathed each set of wires with a special mesh for protection after using shrink wrap for water proofing. I was able to fit the wires under the weather stripping on the edges of the windshield after cleaning out the door. Reluctantly they sat flush and I dropped the wires under the hood and routed them around the hood hinges. I sheathed the inside again and set it into the little tabs that run along the inside hood above engine. For a switch I got a toggle and mounted it to the left of the steering wheel and below the low beams in the underguard of the steering wheel. For power I spiced into the red and black wires that are fused in the auxiliary hook up below. To remove panel just take the 3 black screws of the bottom.
Finally I wired the grounds together on a ring connector and hooked to the neg terminal on the battery and pulled power for lights from the battery. Finally I wired them all to a single 14vDC 60A relay from radioshack.
![da9uravu.jpg da9uravu.jpg](https://www.expeditionforum.com/data/attachments/52/52263-40ca13dd8c5ce53745e9bbdc8b39dff1.jpg)
![u6ydy8u6.jpg u6ydy8u6.jpg](https://www.expeditionforum.com/data/attachments/52/52264-478c2ccadbf80b4b1355b15626697bb5.jpg)
![du3ypusa.jpg du3ypusa.jpg](https://www.expeditionforum.com/data/attachments/52/52265-fbd0bb1987b9fb5f8c1e1fa63ac93e4a.jpg)

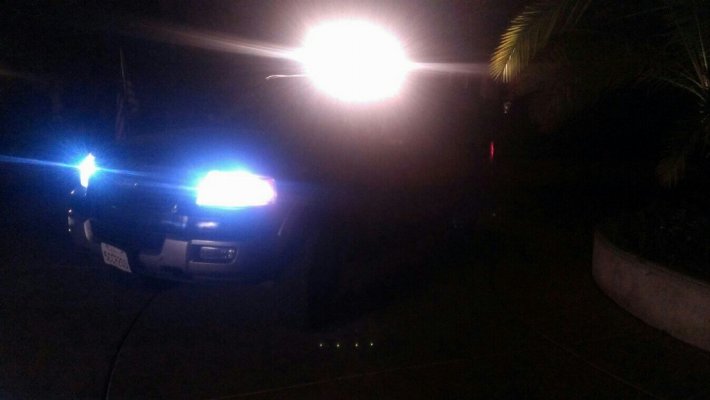

![anesaver.jpg anesaver.jpg](https://www.expeditionforum.com/data/attachments/52/52266-efd0bc7f07b56e9996f651f278dedcd1.jpg)

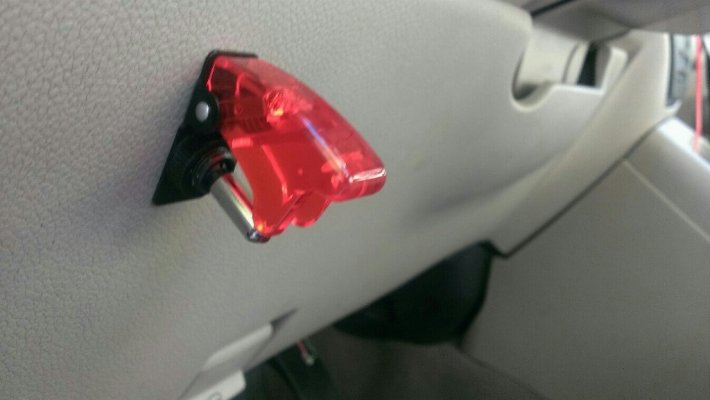

![zu5arure.jpg zu5arure.jpg](https://www.expeditionforum.com/data/attachments/52/52267-ebf844272bff26f667b73c378c6fb8f3.jpg)
Sent from my HTC6435LVW using Tapatalk 4 Beta
Finally I wired the grounds together on a ring connector and hooked to the neg terminal on the battery and pulled power for lights from the battery. Finally I wired them all to a single 14vDC 60A relay from radioshack.
