Added USB-C Charger

[Psychobot90]

It's really whatever the user is comfortable with. Me I always go overboard; I splice and solder.

I'm the overachiever kid with the volcano project that actually spits out lava LOL

I'm with you. I don't want to have to get back in there because my power is cutting out, or the inverter starts smoking.
I think I read on one of the Motorcraft parts they recommend stripping back 1", solder the splice, fold it back and heat shrink.

I usually use marine connectors on my automotive wiring because they're made to be watertight.
I'll likely go with something like the attached for simplicity.

Sent from my Pixel 4 using Tapatalk



[Anthony DeVor]

Thanks i was going to alldata.com. And thats fine for me the 15-17 expeditions are the same with maybe some minor differences.


Sent from my iPhone using Tapatalk



[Psychobot90]

Which outlet would you use? this one ?

Now I just need to hunt down this part number, and the connector that will go to it from my new leads.

Sent from my Pixel 4 using Tapatalk



[TXFRDOwner]

Now I just need to hunt down this part number, and the connector that will go to it from my new leads.

Sent from my Pixel 4 using Tapatalk

WPT-962



[TXFRDOwner]

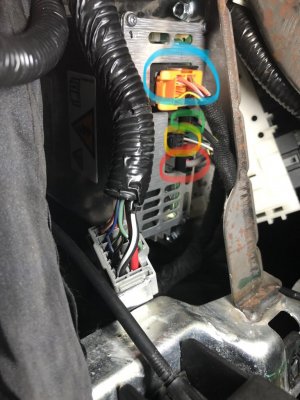

C301 is the pinout for the Expedition's 110V outlet in the back of the console




C2292 is the pinout for the F150's dash 110v plug



[Anthony DeVor]

Thanks i was going to alldata.com. And thats fine for me the 15-17 expeditions are the same with maybe some minor differences.


Sent from my iPhone using Tapatalk



[TXFRDOwner]

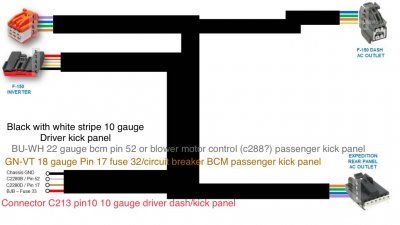

Took the Expedition Diagram and modified it; added the F150 110V outlet on it. So now it shows how the connections should be made from the Inverter (C2293) to the F150 outlet (C2292)

C2293 pin 10 to C2292 pin 6
C2293 pin 11 to C2292 pin 4
C2293 pin 1 to C2292 pin 3
C2293 pin 7 to C2292 pin 1



[Psychobot90]

Took the Expedition Diagram and modified it; added the F150 110V outlet on it. So now it shows how the connections should be made from the Inverter (C2293) to the F150 outlet (C2292)

C2293 pin 10 to C2292 pin 6
C2293 pin 11 to C2292 pin 4
C2293 pin 1 to C2292 pin 3
C2293 pin 7 to C2292 pin 1



View attachment 39707

Thanks for taking the time!

Sent from my Pixel 4 using Tapatalk



[Goofy173]

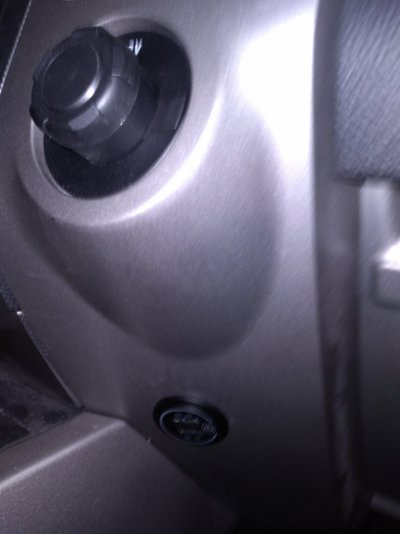

I have a 4wd switch in that spot.



[Goofy173]

I'm always looking for something to add but I think I'm full around that spot. Lol
