What’s This Plug

[acolic]

Hi

While filling the windshield washer fluid I noticed this loose plug.

There doesn’t seem to be anything disconnected.

Any idea what’s it for?

Thanks

Alex


Sent from my iPhone using Tapatalk



[Rich_007]

That connects the flux capacitor to the wormhole logic module. Beeeeeeeeee careful.



[99WhiteC5Coupe]

That connects the flux capacitor to the wormhole logic module. Beeeeeeeeee careful.

Not a very helpful answer. Do your parents know you're using the Internet on a school night?



[Rich_007]

Sorry bout that. It looks like an O2 sensor connection.



[acolic]

Thanks, if it was an O2 sensor would I not get an error on start up?

Because right now I don’t get any trouble codes.


Sent from my iPhone using Tapatalk



[eluther3]

Does your Expy have air suspension? I seem to remember a connector like that going to the compressor for the air suspension system. The location would be passenger side directly in front of the battery, so looks like the right area. If you converted from airbags to shocks (like I did) you may no longer need the connection



[acolic]

Does your Expy have air suspension? I seem to remember a connector like that going to the compressor for the air suspension system. The location would be passenger side directly in front of the battery, so looks like the right area. If you converted from airbags to shocks (like I did) you may no longer need the connection

Nope no air suspension.

The mystery continues.


Sent from my iPhone using Tapatalk



[eluther3]

Actually, that my be additional support for my theory. If you had air suspension and this was not connected, the air suspension would probably not work. With shocks, I think this is a useless connection.



[Rich_007]

I'm sticking to my story (until proven wrong, haha). That's a oxygen sensor connector. Check your sensor and see where the wire goes? It should be running richer if demated. Don't know about throwing any codes.

]



[acolic]

Will do but are you saying that that connector is wired to a location near the battery and the other end is wired to the sensor at the catalytic converter?


Sent from my iPhone using Tapatalk



[Adieu]

Not a very helpful answer. Do your parents know you're using the Internet on a school night?

I think the lil twerps have winter vacation right now



[Vancouver Bob]

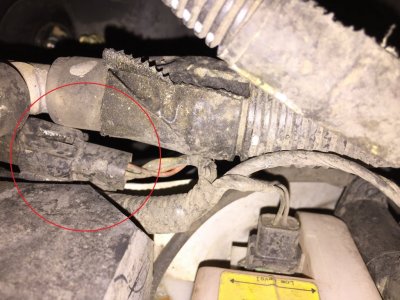

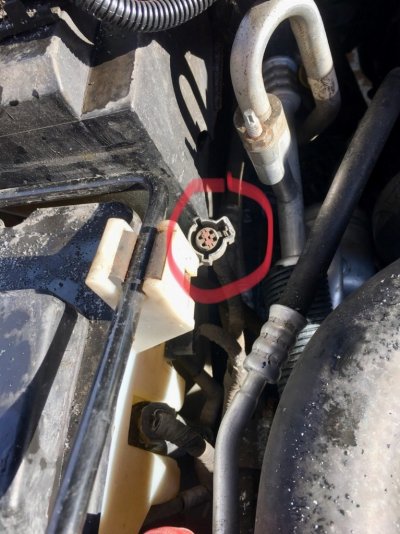

Not sure if this is helpful... but I just looked at mine and think I found the same connector... took a pic of where it goes. Do you have a lose connector floating around in there? Or does your Expy not have these parts of the harness? Seems to go into the main harness but also appears to go to this other connector... hard to tell if it's the same wire or a different one.



[acolic]

Thanks I couldn’t find anything unconnected but I will check again.


Sent from my iPhone using Tapatalk



[dschallmo98expo]

Defiantly the flux capacitor. I know.



[Rich_007]

Just to be clear: I am not a mechanic and am new to the Expedition world. Someone gave me a 2001 5.4 and I love driving that boat. Having my own fuel pump issues right now, so i am learning. I am just hanging my hat on the assumption that that is a unique looking connector and aren't used for anything but the oxygen sensor. That being said: your connector is female, so typically in electronics that would mean it has the voltage on it. That makes me assume it is coming from the pcm side (not the sensor) and providing the voltage that is fed to the variable resistor in the sensor itself. The connector from the sensor would be the male counterpart to that connector. That's my guess. Hope i am not sending you on a wild goose chase.



[Russell Lewis]

Nope no air suspension.

The mystery continues.


Sent from my iPhone using Tapatalk

If no air suspension that’s it the compressor is under the wiper fluid. Ford because they make so many cars has wire harness pre made if something does not apply they just don’t hook up. A friend told me they added turn single mirrors because had the harness for it just no mirror. If you don’t have but want odds are it’s there already



[Bedrck47]

Can you check the color of the wires going to that connector

Let me know if they are black, pink, gray/red and light green/red

Gray/red means a gray wire with a red stripe
same for light green wire with a red stripe



[scoot0073]

I just checked my rig 03 Expedition and I have the same connector and it is just hanging down..
So maybe it's for the air ride compressor for the ones that was equipped and if not Ford just let it hang.. idk

Sent from my Nexus 6P using Tapatalk



[Rich_007]

I thought by the clocking on the tabs it would be easy to identify. Still cant say for sure.
Here is a link to a catalog with pics of ford connectors, then at the end of the doc is a chart listing what the connector is used for.

http://www.fordservicecontent.com/pubs/content/connectors/images/connectorcatalog.pdf

My 01 is in the shop getting a fuel pump, as soon as I get it back I will look to see if that plug is there.
I tried to just upload the pdf, but it is almost 5 mb and the site said no.



[deweysmith]

I'm sticking to my story (until proven wrong, haha). That's a oxygen sensor connector. Check your sensor and see where the wire goes? It should be running richer if demated. Don't know about throwing any codes.

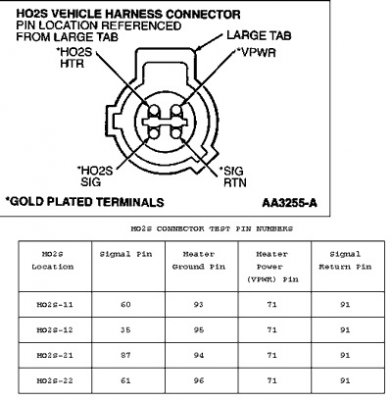

View attachment 23083 ]

You’d get a multitude of codes and drivability problems if an oxygen sensor was unplugged, especially the pre-cat sensor. If both, it would just never leave open loop, but just one would send the computer into a tail spin.

I don’t have a service manual for that generation but it would make far more sense for that to be for the air suspension. The compressor would go right there, and they often don’t change the main harness much between trim levels, too expensive to maintain tooling and processes for different ones. They also reuse the same connectors in many different places. For example, the compressor connector on the 3rd gen (that I do have a service manual for) shows that the same connector pigtail is used for the air suspension compressor, the engine fans, and the 4-pin towing harness.
