2010-->2008 seat swap

[Adieu]

I hooked up all the switches to the motors (spliced wires from tan and dark plug to the fat wires in green plug), rang em thru with tester seems correct....but still no power.

There were two untapped wires left on the green plug, do I need to tap in a hot and a ground there???


Up front I hooked up my matching black big connector and left the white port unhooked since i dont have anything to plug in there


Also swapped over my pretensioner...and STILL get an airbag light.


Any ideas????? Plz help!



[Adieu]

The two fat wires left from the green plug that seems to be the memory modules "output" are brown and white-orange....

Do i need to splice in power and ground here?



[ebasista]

When I get home tomorrow I'll look up my schematic from what I recall you still need a power and ground



[stamp11127]

You like to live dangerous if the seats have internal airbags.

Get the diagrams and work safer.



[ebasista]

Airbags operate on the yellow connector



[ebasista]

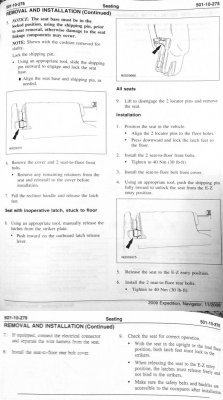

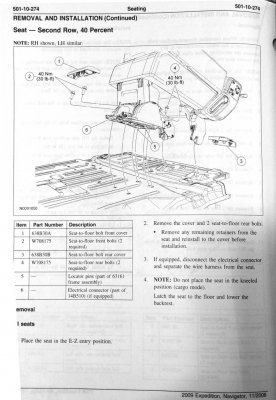

Here you go



[ebasista]

See my pictures of what you do to the seat connectors and splices

http://www.expeditionforum.com/posts/254404/



[Adieu]

See my pictures of what you do to the seat connectors and splices

http://www.expeditionforum.com/posts/254404/

Thanks

....but you covered the part I already did

And glossed over the part that troubles me ("and then just connect power to the white thingie")



[ebasista]

Look at the pic of the white connector. I spliced a red wire into the green wire on the white connector to give it power.



[ebasista]

Green/red at connector C312 (big white one) needs power.

Schematic reads plain as day above.
