22 trailer brake controller

[GaryW1969]

Wow there's a lot of information here! I'm trying to surmise exactly what I need to do to go to the pro trailer brake option on my 2022 max limited. Is there anybody out there that can just put a summary of instructions and how to go do it and the parts needed? It would be greatly appreciated



[Langer]

It's possible. I messed with my setting so much prior to adding the wire, I have no way of knowing. Did you get yours working?

Just got it all installed!
Now off to the programming races!



[JohnsonEJ23]

Just got it all installed!
Now off to the programming races!

I see you put in the knob for the pro trailer backup. Did you swap out the airbag module as well? My understanding is there is something in a version of that module that is needed to make that knob work. I put the knob in myself too, but haven't dug too much into what I need to do to make it work...



[Langer]

I see you put in the knob for the pro trailer backup. Did you swap out the airbag module as well? My understanding is there is something in a version of that module that is needed to make that knob work. I put the knob in myself too, but haven't dug too much into what I need to do to make it work...

Nope, was just copying you. Thought you had it all figured out. Lol



[JohnsonEJ23]

Nope, was just copying you. Thought you had it all figured out. Lol

If you copy me, you should be good with the trailer braking, but not the backup module.



[Langer]

I will share that information, but not until I figure out what ford is going to do about the missing wire. At that time, I'll make a comprehensive process.

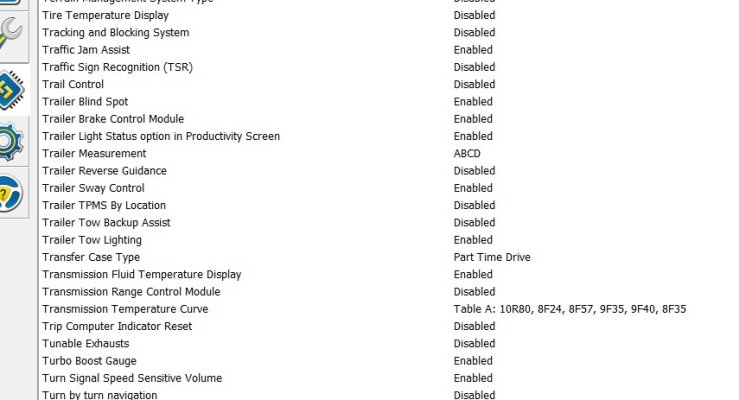

For what it's worth, each line in the TRM needed changed, and you have to verify that lines in the APIM and IPC are switched to ENABLED.

I started the process very methodically, notating all of my Forscan changes. As time progressed and positive results weren't achieved, frustration got the best of me and I stopped keeping track of my changes. When i went back to my old adage of LOOK-LISTEN-LEARN did i make immediate progress. Sometimes you just have to get back to your roots, you know.

***Edit*** sorry, reading comprehension.



Sorry to bother, where did you find the changes you needed to make in your TRM?



[Langer]

Wow there's a lot of information here! I'm trying to surmise exactly what I need to do to go to the pro trailer brake option on my 2022 max limited. Is there anybody out there that can just put a summary of instructions and how to go do it and the parts needed? It would be greatly appreciated

Sounds like the jury is still out on the pro-trailer function.



[GaryW1969]

JohnsonEJ 23, did you use the below module? I ask because when I go into set it up through Forscanthere's no where to enable the trailer brake gain setting

• Trailer Brake Module (With Pro Trailer): ML3Z19H332J



[JohnsonEJ23]

Yes, that is what I ordered. The sticker on the part showed ML3T-19J295-CA, so at first, I thought they sent me the wrong part, but they shared something with me saying that this was an "engineering number" that correlated to the ordered part number.



[GaryW1969]

Ok guys .. I'm at a loss. I've installed the below parts and ran the LIN wire like has been described. Now when I go into Forscan IPC module the "Trailer Brake Controller Gain" isn't there.

Any ideas?

Trailer Brake Switch: ML3Z-14529-AC
Jumper Wire: NL1Z14A411F
Trailer Brake Module (With Pro Trailer): ML3Z19H332J



[Langer]

Ok guys .. I'm at a loss. I've installed the below parts and ran the LIN wire like has been described. Now when I go into Forscan IPC module the "Trailer Brake Controller Gain" isn't there.

Any ideas?

Trailer Brake Switch: ML3Z-14529-AC
Jumper Wire: NL1Z14A411F
Trailer Brake Module (With Pro Trailer): ML3Z19H332JView attachment 86478

I’m still struggling with activation, myself. However, my understanding is that you cannot use “easy mode,” you have to go line by line (per the link in @JohnsonEJ23 post) to change.

I recently looked up a truck’s vin on Autotrader to copy the line by line code they have for these modules, in case that is required, but haven’t had time to go playing around in FORScan for a minute.



[GaryW1969]

I've tried that also. Given the Gain isn't showing up in IPC I'm thinking I have the wrong trailer brake control module.



[Langer]

I've tried that also. Given the Gain isn't showing up in IPC I'm thinking I have the wrong trailer brake control module.

Are you getting any error codes with yours? Or just no function?
