Show your Lifted 3rd Gens

[16plati]

I am lifting my 17 EL Limited with a 3/2. Will a 17x9 +12 Offset wheel fit ok with 305-65-17 or 315-70-17?

You will probably have to cut some plastic



[BBenson]

Where would I need to likely cut plastic? On the front bumper in front of the tires or somewhere else?



[16plati]

Where would I need to likely cut plastic? On the front bumper in front of the tires or somewhere else?

Wheel well liner
Front lip of lower bumper on wheel well
Electronic running board ( I would just loosen these and move them back if they are in the way)



[BBenson]

Where would I need to likely cut plastic? On the front bumper in front of the tires or somewhere else?

Wheel well liner
Front lip of lower bumper on wheel well
Electronic running board ( I would just loosen these and move them back if they are in the way)

Do you think the rubbing will be minimal with minimal cuts? I wanted to put raptor size tires on them (315-70-17) with the new +12 offset wheels im looking at. Is this a bad idea, should I find a wheel with a different offset?



[16plati]

Do you think the rubbing will be minimal with minimal cuts? I wanted to put raptor size tires on them (315-70-17) with the new +12 offset wheels im looking at. Is this a bad idea, should I find a wheel with a different offset?

So I have 35/11.50/20 on stock +44 offset wheels AND 1.25” bora adapters and had to cut maybe an inch out of my lower front portion on the fender flare and moved my electric running boards back about 1”. Covered the front cut with black door trim



[BBenson]

Sweet, with your +44 offset with 1.25 spacers, it will be almost identical to me having +12 offset.

Thanks Man.



[BBenson]

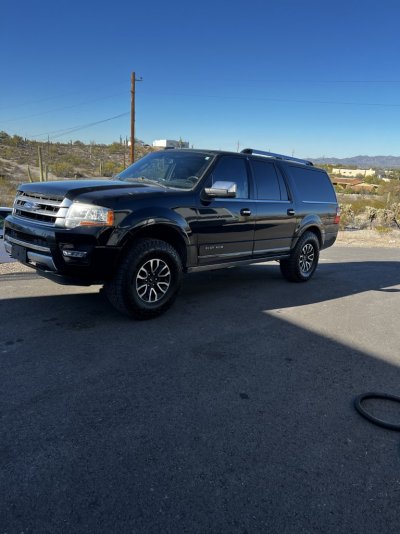

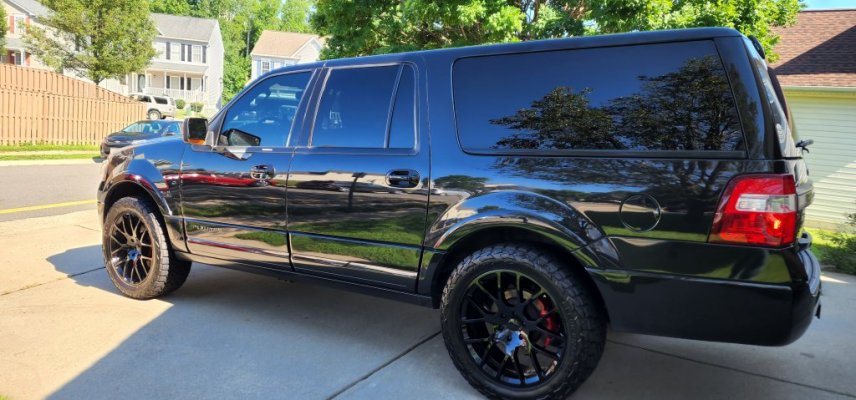

My new to me 2015 ssv on 275/65/20’s

View attachment 29380

Are those the +20 offset or +0 offset Trophy wheels?



[16plati]

Sweet, with your +44 offset with 1.25 spacers, it will be almost identical to me having +12 offset.

Thanks Man.

Right on the $$. Next tire I need tires I’ll be dropping the spacers and going somewhere between +10 and +18



[jered]

I have a 2015 king ranch el, I was told I couldn't lift it due to the air ride suspension on it. Is anyone aware of a kit that would work?



[LokiWolf]

I have a 2015 king ranch el, I was told I couldn't lift it due to the air ride suspension on it. Is anyone aware of a kit that would work?

No 2015 has air ride. It might have the load leveling shocks. They will still work, just won’t load level until they compress more. They are Nivomat shocks. They have no electronics. They do the leveling using valving.


Sent from my iPhone using Tapatalk Pro
