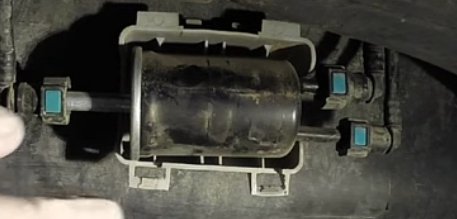

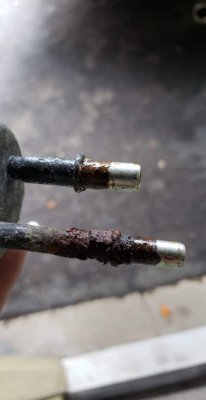

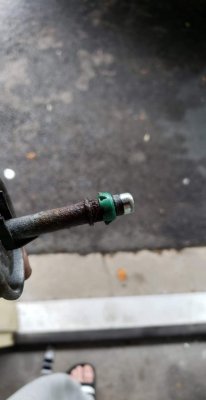

I tried searching everywhere. does anybody know how i can manage this repair for the fittings or do i need new fuel lines? on one fitting came loose but all 3 were super rusted i might as well do all 3.received_2532932276750333.jpgreceived_462648317659894.jpgreceived_723690638053163.jpg5c672e2798ad878b22c019de8de8c759.jpg

Sent from my SM-N960U using Tapatalk


Hamfisted

Full Access Members
Joined
Nov 20, 2012
Posts
2,581
Reaction score
1,465
Location
Ft Lauderdale
Can you get the locking ring off the old filter? Or is it all tore up now ?

Measure the filter pipe, but I think it's 5/16" steel. The fittings are just Bundy style. Use a heat gun to remove the old fitting and measure before ordering a new one, or take it to the store with you. Heat up the line with the heat gun before re-installing the new fitting to soften up the line and avoid damage and leaks. It's under about 50 psi of fuel pressure.

https://www.amazon.com/Dorman-800-1...5VCMGEXZCXY&psc=1&refRID=FH907SD575VCMGEXZCXY

Last edited:
OP
OP
JuniorExp03EB

JuniorExp03EB

Full Access Members
Joined
Apr 1, 2018
Posts
114
Reaction score
8
Location
Chicago, IL
no ill have to add a new tip. i got it off installed and leaked

Sent from my SM-N960U using Tapatalk


Adieu

Full Access Members
Joined
Dec 22, 2016
Posts
3,700
Reaction score
786
Location
SoCal
IS there anything wrong with the lines (other than the one whose fitting maybe-broke?)

The old filter's tips are clean so they did their job

OP
OP
JuniorExp03EB

JuniorExp03EB

Full Access Members
Joined
Apr 1, 2018
Posts
114
Reaction score
8
Location
Chicago, IL
yes line integrity is still fine. just thebfilter rusted out. the other 2 quickbdisconnects are spongy tho.

yes ibonly have to change one.

Sent from my SM-N960U using Tapatalk


Hamfisted

Full Access Members
Joined
Nov 20, 2012
Posts
2,581
Reaction score
1,465
Location
Ft Lauderdale
Do you have a heat gun ( hot air gun...) ? You can remove the end from the line with a heat gun ( soften up the line and pull the fitting out...). DO NOT USE ANY KIND OF FLAME TO HEAT THE LINE !
Then NAPA or one of the other autoparts stores (even Advance Autoparts...) has the replacement fittings that will fit the fuel filter ( Bundy style - 5/16" pipe...). But take your new fuel filter, or one they have in the store and make sure the fitting clicks tight on the filter, before you bother to re-install it on the fuel line.


Something like this....

https://www.amazon.com/dp/B07QDJS6M...jbGlja1JlZGlyZWN0JmRvTm90TG9nQ2xpY2s9dHJ1ZQ==


Or even these ...

https://shop.advanceautoparts.com/p...-in-nylon-w-90-degree-bend-800-123/10191169-p




Last edited:
OP
OP
JuniorExp03EB

JuniorExp03EB

Full Access Members
Joined
Apr 1, 2018
Posts
114
Reaction score
8
Location
Chicago, IL
Do you have a heat gun ( hot air gun...) ? You can remove the end from the line with a heat gun ( soften up the line and pull the fitting out...). DO NOT USE ANY KIND OF FLAME TO HEAT THE LINE !
Then NAPA or one of the other autoparts stores (even Advance Autoparts...) has the replacement fittings that will fit the fuel filter ( 5/16" pipe...). But take your new fuel filter, or one they have in the store and make sure the fitting clicks tight on the filter, before you bother to re-install it on the fuel line.


Something like this....

https://shop.advanceautoparts.com/p...-in-nylon-w-90-degree-bend-800-123/10191169-p



wow! your awsome. thanks!!!!!


Sent from my SM-N960U using Tapatalk

OP
OP
JuniorExp03EB

JuniorExp03EB

Full Access Members
Joined
Apr 1, 2018
Posts
114
Reaction score
8
Location
Chicago, IL
Should Juction box, Passanger floor fuse box, make any clicking or noises when starting the truck? idk if im being paranoid lol the fuel fittings arrive wens/thrus and heat gun tommarow so ill be giving it a Go, on thrusday evening after work hopefull amazon arrives on time.
