Show Off Your Lifted and Big Tire Gen 4s!!

Spoke to the moderator, and this is going to be made a sticky so let's see all your pics of your lifted / or bigger tire Gen 4s!

Please show your best pics, and add as much technical data as you can, as other folks will come here for info!

2020 Ford Expedition XLT FX4

Lift : Bilstein 5100 F150 struts/5100 Expedition rear shocks (2 inches of lift all around--for now)

Tires :Nitto Terra Grapplers 295/70-18 (34.3 inch tall 11.7 wide) and it does fit in spare well deflated

Rims: Factory FX4, .25 inch spacers for increased offset (for now)

Does it poke? No

Does it rub? Yup, fronts during normal driving and rear has almost no clearance. Have not fully flexed it yet but control arms will touch front springs during full droop.













Last edited:
OP
OP
Expedition Dave

Expedition Dave

Full Access Members
Joined
Jun 7, 2020
Posts
576
Reaction score
266
Location
A Tiny Little Dot in Florida
Hoping you lifted and bigger tire guys will add to this thread?

We have so many other Gen 4 Forum threads spread out with a variety of pics and stats, I was hoping we could make this a sticky...?

Last edited:
OP
OP
Expedition Dave

Expedition Dave

Full Access Members
Joined
Jun 7, 2020
Posts
576
Reaction score
266
Location
A Tiny Little Dot in Florida
Hoping you lifted and bigger tire guys will add to this thread?

We have so many other Gen 4 Forum threads spread out with a variety of pics and stats, I was hoping we could make this a sticky...?


JimW

Well-Known Member
Joined
Oct 23, 2020
Posts
58
Reaction score
34
Location
Lake Gaston, NC
2018 Limited Max HD
Lift : Bilstein 5100 F150 struts bottom ring/5100 Expedition rear shocks top ring
Tires :Toyo Open Country AT3 275/65r20 (34.1 inch tall 11 wide)
Rims: Factory 20" with Rough County F150 2" spacers

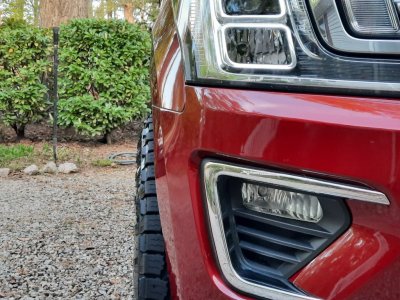

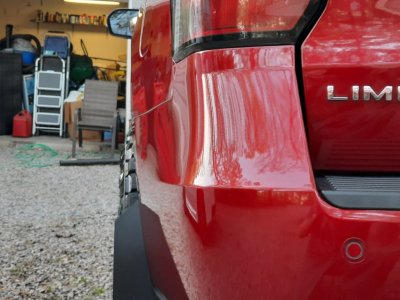

Does it poke? Yes a little
Does it rub? Yes front tires in front and rear of the tire.
need to pull/adjust fender liners back.

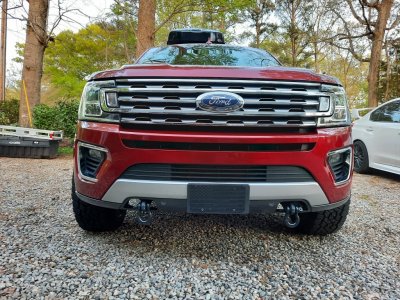

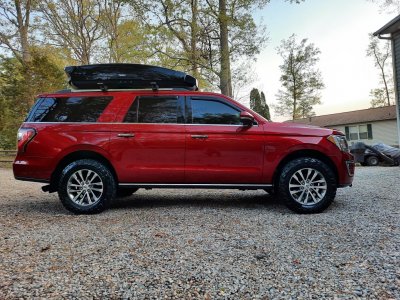

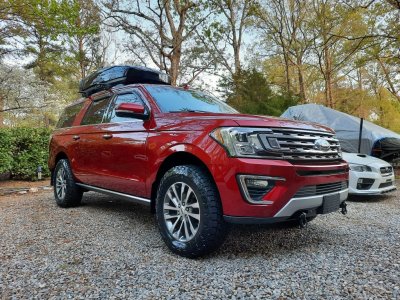

Expeditionside2.jpg ExpeditionfrontPoke2.jpg ExpeditionrearPoke.jpg ExpeditionFront.jpg Expeditionside.jpg


5280tunage

Full Access Members
Joined
Sep 17, 2019
Posts
1,200
Reaction score
650
Location
colorado
Wish I could do this... But I still need mine to fit in my garage, and as it is, I only have about 1.5" clearance. Too many break ins etc in my area and I don't trust folks. Not to mention I already have enough issues with warranty and reliability...

OP
OP
Expedition Dave

Expedition Dave

Full Access Members
Joined
Jun 7, 2020
Posts
576
Reaction score
266
Location
A Tiny Little Dot in Florida
Surprised with how many looks I get in my truck since lifted. I routinely drive 'the strip' here and a lot of folks look at it, a little confused at first.
